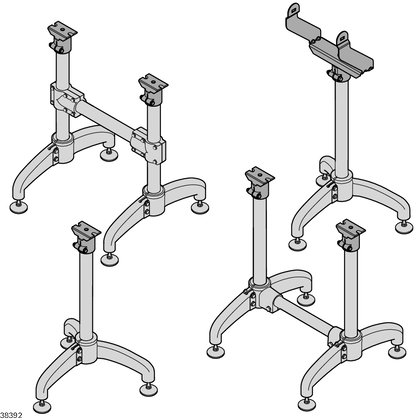

Leg set STS
Specifications
- Height 30…285 mm
- Length 44…3150 mm
- Material Non-rusting steel 1.4301, Non-rusting steel 1.4301/PA, PA, Steel, stainless
- Size [b] 6.5901201602403E+21, 65, 90, 120, 160, 240, 320, 6590120160240320
Welcome to Gavilion
-
Australia
- Login / Register
Browse Categories
VarioFlow plus stainless steel system
FDA-compliant materials and easy-to-clean surfaces fulfill the high standards in the areas of the food & packaging and health & care industries where hygiene is crucial.

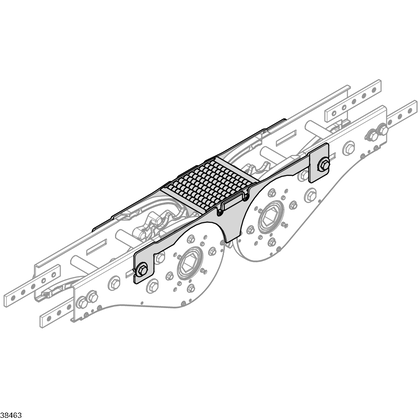

Drive and return unit STS, connection kit
Specifications
- Size [b] 65, 90, 120, 160, 6590120160240320
- Scope of delivery Incl. fastening material, Incl. fastening material, transmission and protective cover, Incl. fastening material,Transmission and protective cover
- Delivery information Not assembled, Partially assembled
- Material Aluminum/non-rusting steel 1.4301/PA/PE/ABS/PUR, Aluminum/stainless steel/PA/PE/ABS/PUR, Non-rusting steel 1.4301, Stainless steel 1.4301/POM
Downloads

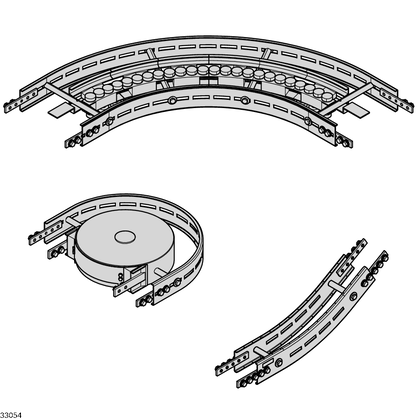

Curves STS
Specifications
- Deflection angle [α] 5 °, 15 °, 30 °, 45 °, 90 °, 180 °
- Delivery information Fully assembled
- Dimension A [mm] 185.5…1320
- Height 65…320 mm
Downloads

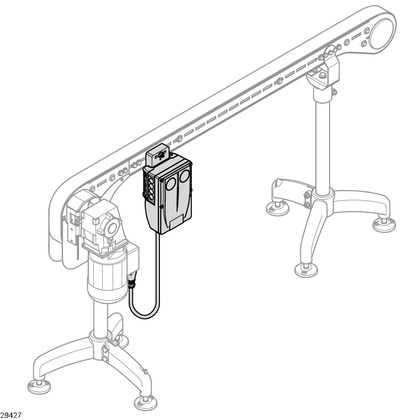

Drive and return unit STS, frequency converter

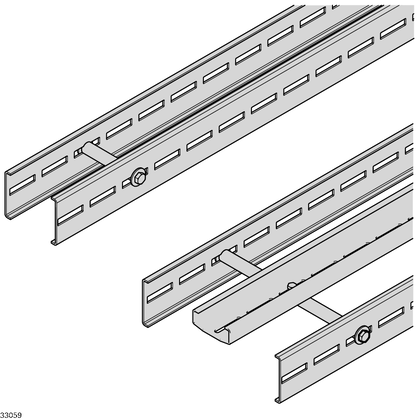

Sections STS
Specifications
- Material Non-rusting steel 1.4301
- Size [b] 65, 90, 120, 160, 240, 320, 160240320, 6590120160240320
- Height 20.1…3100 mm
- Length 20…3040 mm
Downloads

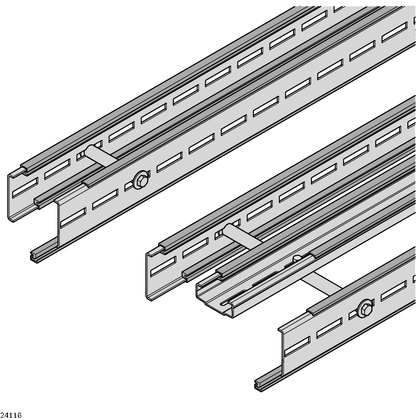

Sections STS, slide rail
Specifications
- Height 11.5 mm, 12 mm, 13 mm, 45 mm, 150 mm
- Length 10…30000 mm
- Packaging unit 1, 100
- Size [b] 65, 90, 120, 6590120160240320
Downloads

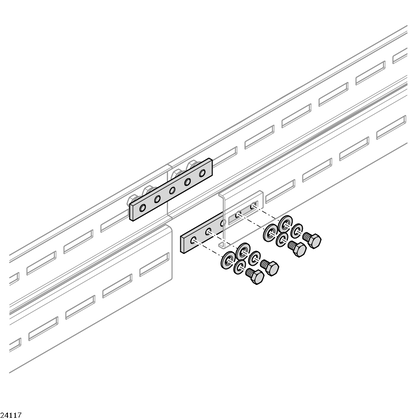

Sections STS, profile connector
Specifications
- Delivery information Not assembled
- Dimension [H] 17 mm, 20 mm
- Height 17.5 mm, 20.1 mm
- Length 120 mm
Downloads

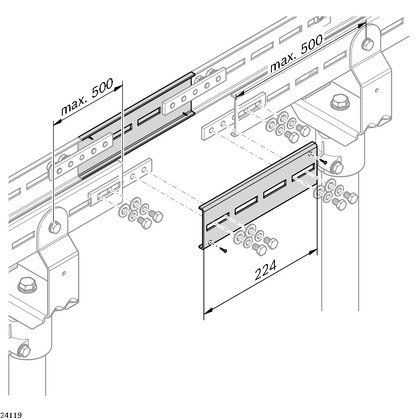

Sections STS, assembly module
Specifications
- Height 11.5 mm, 12 mm, 69 mm
- Length 334 mm, 750 mm, 3024 mm, 30000 mm
- Material Non-rusting steel 1.4301, PE-UHMW, Stainless steel 1.4301
- Required accessories Pop rivet D3x8mm, Slide rail, Slide rail assembly tool,Sheet metal screw 2.9x9.5 DIN 7982; DIN EN ISO 7050 <LineBreak/>1 screw per slide rail section
Downloads
Sections STS, connection elements
Specifications
- Height 20 mm
- Length 8 mm, 11 mm
- Material Steel, stainless
- Packaging unit 20
Downloads

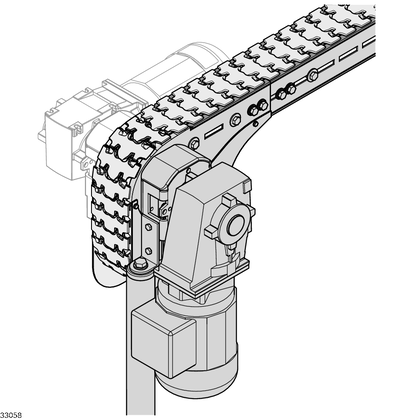

Drive and return unit STS
Specifications
- Size [b] 65, 90, 120, 160, 240, 320, 6590120160240320
- Height 80 mm, 161.69 mm, 201.2 mm, 287.1 mm, 334.4 mm, 484 mm
- Length 67…694 mm
- Width 80…341 mm
Downloads

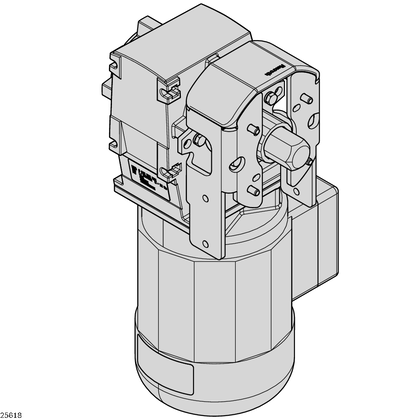

Drive and return unit STS, drive kit
Specifications
- Delivery information Assembly kit
- Gear motor [GM] 0 = Schnittstelle SW27 ohne Getriebemotor,1 = Schnittstelle SW27 Lenze-Getriebemotor hohes Drehmoment,2 = Schnittstelle für SEW SA47 ohne Getriebemotor,3 = Schnittstelle SW17 niedriges Drehmoment,4 = Schnittstelle für SEW SA37 ohne Getriebemotor
- Material information Flange, shaft (STS): Non-rusting steel 1.4301,AL-STS motor: Diecast aluminum,Cover tube (STS): PE,Flange (AL): Diecast aluminum,Shaft (AL): Non-rusting steel 1.4301/PA,Ball catch coupling (AL): Steel
- Modification Additional versions are available on request from our modification department. (COS@boschrexroth.de)
