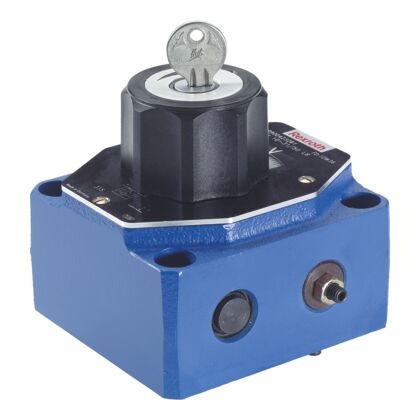

Flow control valves, mechanical
Specifications
- Size 6, 10, 16
- Component series 2FRM6, 2FRM10,16, Z2FRM6
- Maximum operating pressure 315 bar
- Maximum flow 0.2…160 l/min
Welcome to Gavilion
-
Australia
- Login / Register
Browse Categories
Flow control valves
Flow control valves from Bosch Rexroth reduce or control the flow capacity in a hydraulic system and thus influence the speed of the hydraulic drives.

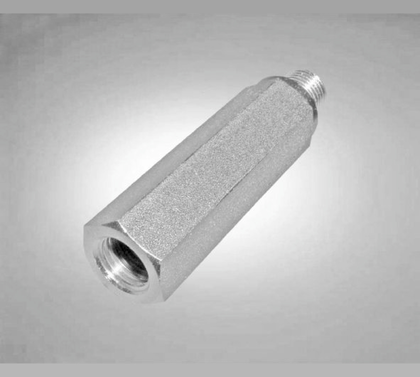

Flow fuse
Specifications
- Component series VPN-FF (G 1/2-G 3/4), VPN-FF (G 1/4-G 3/8), VPN-MF (G 1/2-G 3/4), VPN-MF (G 1/4-G 3/8)
- Maximum operating pressure 315 bar
- Maximum flow 25 l/min, 50 l/min, 80 l/min, 150 l/min
- Direct - Pilot Pilot operated
Downloads

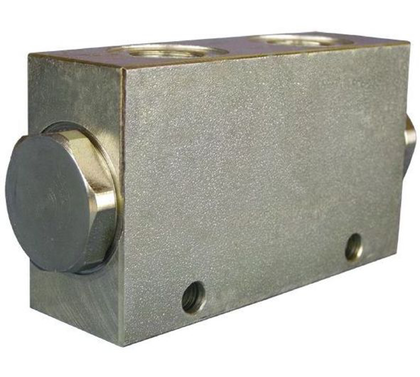

Flow divider and combiner
Specifications
- Component series A-DRF (G 1-G 3/4), A-DRF (G 1/2-G 3/8), A-DRF (G 3/4-G 1/2), A-DRF (G 3/8), DRF (G 3/4-G 1/2), DRF (G 3/8), DRF (G 3/8-G 1/2), DRF (G1-G 3/4)
- Maximum operating pressure 210 bar, 350 bar
- Maximum flow 4…150 l/min
- Direct - Pilot Pilot operated
Downloads

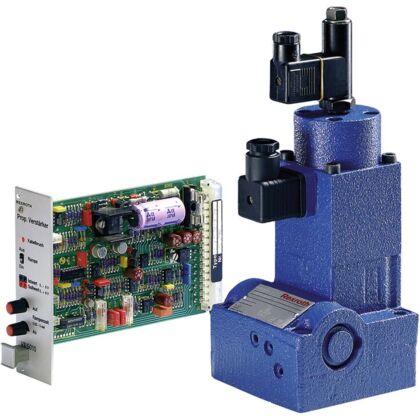

Flow control valves, proportional
Specifications
- Maximum operating pressure 210 bar, 250 bar, 315 bar, 350 bar
- Maximum flow 1.6…400 l/min
- Hydraulic fluid HL,HLP, HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR, HL,HLP,HLPD,HVLP,HVLPD,HFC
- Type of connection Subplate mounting, Threaded connection
Downloads
Throttle valves
Specifications
- Size 5, 6, 8, 10, 15, 16, 20, 25
- Maximum operating pressure 210 bar, 250 bar, 300 bar, 315 bar, 350 bar
- Maximum flow 2.5…360 l/min
- Type of connection Cartridge valve, Sandwich plate, Subplate mounting, Threaded connection
