Joints

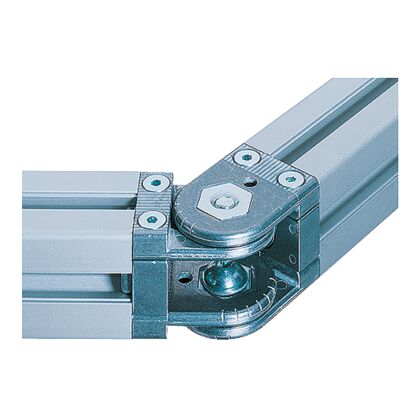

Joint

Specifications

• Material information Clamping lever: Diecast zinc; black plastic coated,Steel parts: galvanized, strength class 5.8, designLINE joint: Diecast aluminum, painted, RAL 9006, fastening material: Steel, galvanized, designLINE joint: Diecast zinc, painted,Fastening material: Steel, galvanized, Fastening material: Steel, galvanized, Joint: Diecast aluminum,Fastening material: Steel, galvanized, Joint: Diecast zinc,Fastening material: Steel, galvanized
• Material Diecast aluminum, Diecast aluminum, painted, Diecast zinc, Diecast zinc, painted, Diecast zinc, plastic coated
• Dimensions 20x20, 30x30, 40x40, 45x45, 60x60
• ESD Yes

Downloads

• Data Sheet
• Manual

Products

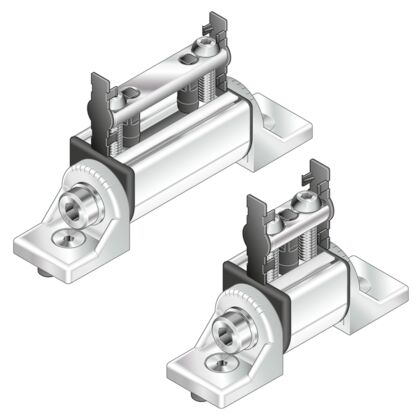

Swivel bearing

Specifications

• Bending moment 1 40 Nm, 50 Nm, 130 Nm, 150 Nm
• Dimension [p] 40 mm, 45 mm, 80 mm, 90 mm
• Dimensions 40x40, 40x80, 45x90, 45x45
• ESD Yes

Downloads

• Data Sheet
• Manual

Products

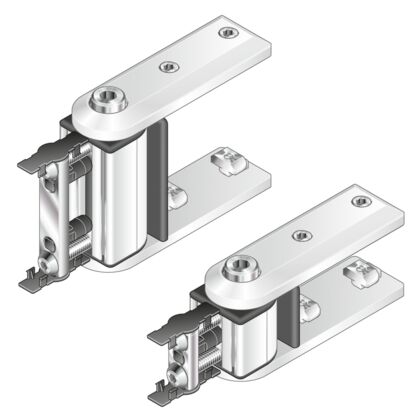

Supporting arm joint

Specifications

• Bending moment 1 40 Nm, 50 Nm, 130 Nm, 150 Nm
• Dimension [p] 40 mm, 45 mm, 80 mm, 90 mm
• Dimensions 40x80, 40x40, 45x45, 45x90
• ESD Yes

Downloads

• Data Sheet
• Manual

Products

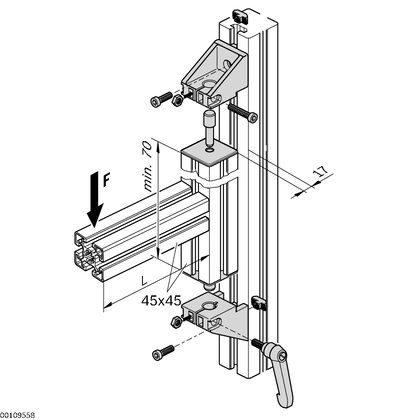

Bearing pedestal

Specifications

• Bending moment 1 400 Nm
• Fastening material 2 x cylinder head screw ISO4762-M8x16,2x T-nut groove 10 M8
• Height 45 mm
• Length 105 mm

Downloads

• Data Sheet

Products

Clamping lever

Specifications

• Height 15 mm, 17.5 mm, 18 mm, 20 mm, 71 mm
• Length 62 mm, 78 mm, 93 mm, 100 mm, 105 mm
• Length [L] 10 mm, 12 mm, 16 mm, 20 mm, 40 mm, 45 mm, 55 mm
• Width 21 mm, 55 mm, 60 mm, 65 mm, 72 mm, 100 mm

Downloads

• Data Sheet

Products

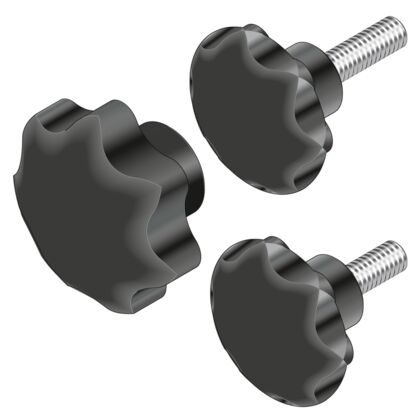

Star knob

Specifications

• Height 25 mm, 35 mm, 40 mm
• Length 30 mm, 40 mm
• Material information Star knob: PA, black,Steel parts: galvanized, strength class 5.8
• Profile slot 8 ; 10

Downloads

• Data Sheet

Products
