Elements for manual movement

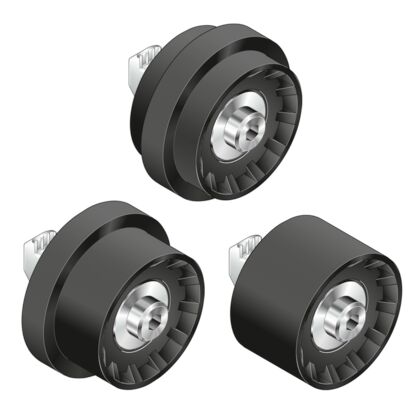

Support wheels

Specifications

• Color Black
• ESD Yes
• Fastening material 1 x cylinder head screw DIN 7984 M8x40,1x washer DIN 7349 8.4,1x T-nut groove 10 M8
• Force [Fmax] 150 N

Downloads

• Data Sheet

Products

Slide hangers, snap hooks

Specifications

• Height 35 mm, 75 mm
• Length 58 mm, 180 mm
• Material POM, Steel, galvanized
• Packaging unit 1

Downloads

• Data Sheet

Products

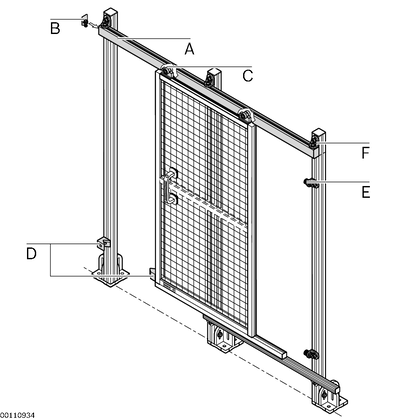

Components for sliding door

Specifications

• Height 15 mm, 25 mm, 29 mm, 30 mm, 40 mm, 291 mm
• Length 20 mm, 30 mm, 60 mm, 70 mm, 80 mm, 6200 mm
• Width 20 mm, 40 mm, 45 mm, 50 mm, 100 mm, 250 mm
• Material Aluminum, anodized, Diecast zinc, PA, Rubber

Downloads

• Data Sheet
• Manual

Products

Rack, pinion

Specifications

• Color Black, White
• Height 50 mm
• Length 27 mm, 105 mm
• Material PA, POM

Downloads

• Data Sheet

Products

Section profiles SP/R

Specifications

• Condition on delivery Single rod in standard length, Variable length
• Length [L] 6070 mm
• Packaging unit 1
• Area moment of inertia in x-direction [lx] 4.3 cm⁴

Downloads

• Data Sheet

Products

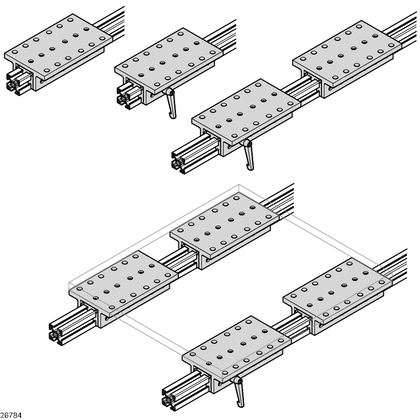

EcoSlide trolley

Specifications

• Compression load [Fmax] 750 N, 1250 N, 1500 N, 2500 N, 5000 N
• Dimensions 30x30x160, 30x30x80, 45x60x160, 45x45x160, 45x60x80, 45x90x160, 45x90x80, 45x45x80
• Material Aluminum, anodized
• Maximum sliding speed 12 m/min

Downloads

• Data Sheet

Products

EcoSlide accessories

Specifications

• Material POM, Steel, galvanized, Steel, plain
• Packaging unit 1, 4, 10
• Height 11.5 mm, 15 mm, 16 mm, 20 mm
• Length 6 mm, 7 mm, 80 mm

Downloads

• Data Sheet

Products

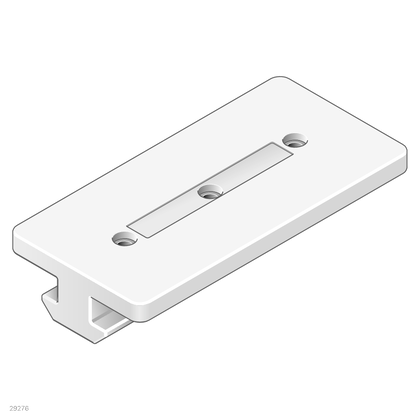

Sliders for cam roller guides

Specifications

• Color Natural
• Height 9.8 mm, 11.5 mm, 16 mm, 17 mm, 18 mm, 22 mm, 27.6 mm
• Length 60 mm, 80 mm
• Material POM

Downloads

• Data Sheet

Products
