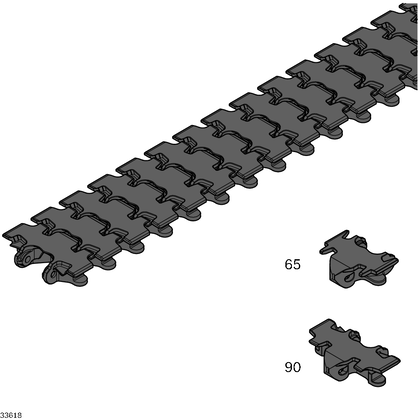

Conveyor chain ESD
Specifications
- Height 19 mm, 150 mm, 530 mm
- Length 24.5 mm, 150 mm, 530 mm
- Packaging unit 1, 100
- Size [b] 65, 90, 6590120160240320
Welcome to Gavilion
-
Australia
- Login / Register
Browse Categories
VarioFlow plus ESD system
Components and parts suitable for use in an EPA (ESD Protected Area – electrostatic sensitive area).

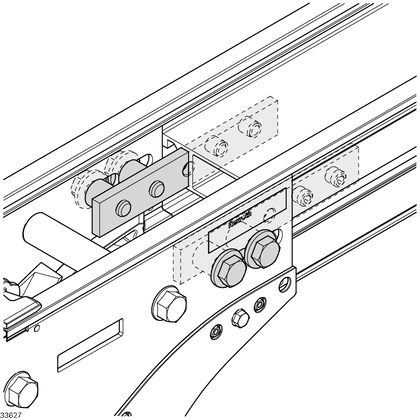

Adapter AL-STS
Specifications
- Delivery information Not assembled
- Height 25 mm
- Length 150 mm
- Material Aluminum/steel, galvanized
Downloads

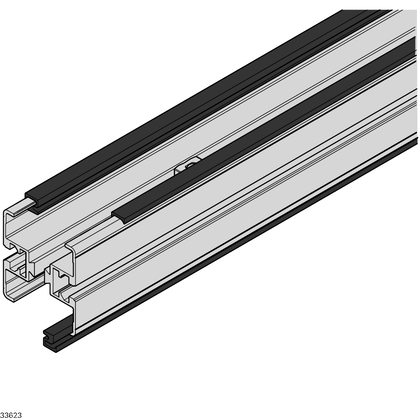

Sliding rail ESD
Specifications
- Height 1.7 mm, 12 mm
- Length 9.5 mm, 750 mm
- Size [b] 6590, 6590120160240320
- Width 5.5 mm, 750 mm
Downloads

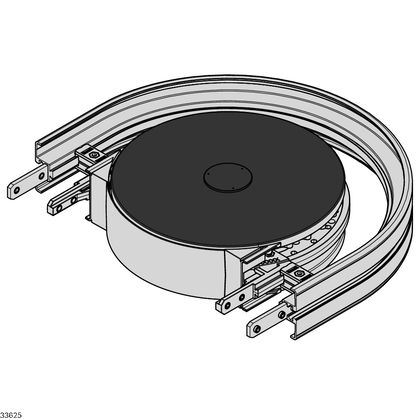

Curve wheel ESD
Specifications
- Deflection angle [α] 30 °, 45 °, 90 °, 180 °
- Height 51 mm, 92.6 mm
- Length 309…421 mm
- Size [b] 65, 90
Downloads

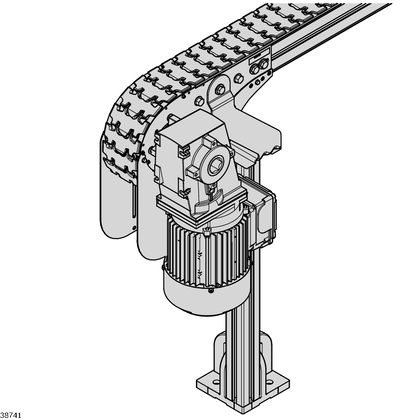

Drive and return unit ESD
Specifications
- Actual chain length 2x 0,2, 2x 514, 68 m, 72 m, 151 m
- Delivery information Assembled, connector enclosed, Assembled, profile connector enclosed, Fully assembled, Fully assembled,Connector, chain guard enclosed, Not assembled
- Effective sliding rail length 4x 0,2, 82 m, 91 m, 742 m, 881 m, 11385 m
- Length 393.5 mm, 393.8 mm, 421.412 mm, 481 mm, 514 mm, 694 mm
Downloads
Drive and return unit ESD, drive kit
Specifications
- Delivery information Assembly kit
- Gear motor [GM] 0 = Schnittstelle SW27 ohne Getriebemotor,1 = Schnittstelle SW27 mit Getriebemotor hohes Drehmoment,2 = Schnittstelle SEW 47 ohne Getriebemotor,4 = Schnittstelle SEW SA37 ohne Getriebemotor, 0 = Schnittstelle SW27 ohne Getriebemotor,1 = Schnittstelle SW27 Lenze-Getriebemotor hohes Drehmoment,2 = Schnittstelle für SEW SA47 ohne Getriebemotor,3 = Schnittstelle SW17 niedriges Drehmoment,4 = Schnittstelle für SEW SA37 ohne Getriebemotor
- Material information Flange, shaft (STS): Non-rusting steel 1.4301,AL-STS motor: Diecast aluminum,Cover tube (STS): PE,Flange (AL): Diecast aluminum,Shaft (AL): Non-rusting steel 1.4301/PA,Ball catch coupling (AL): Steel, Flange: Diecast aluminum,Shaft: STS,Connecting sheet, cover sheet: Steel, galvanized,Ball catch coupling: Steel
- Modification Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Downloads

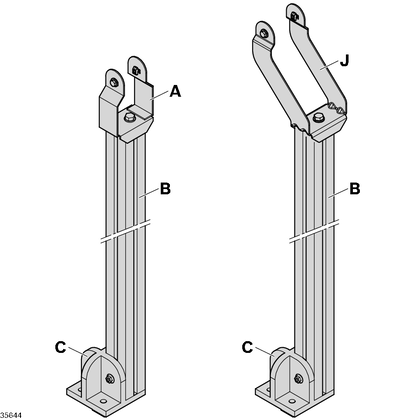

Leg set ESD
Specifications
- Material Aluminum, anodized, Diecast aluminum, Non-rusting steel 1.4301, PP, Steel, galvanized
- Packaging unit 1, 20, 100, Set
- Height 10 mm, 14 mm, 110 mm, 135 mm, 190 mm
- Length 20 mm, 60 mm, 70 mm, 100 mm, 120 mm, 130 mm
