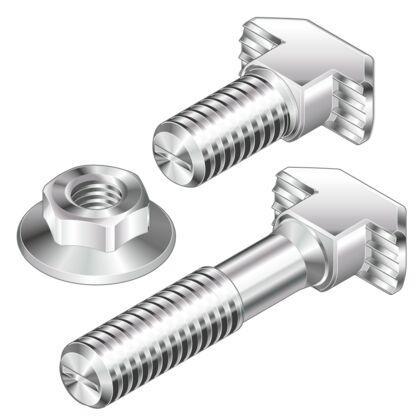

Flange nut, T-bolt
Specifications
- ESD Yes
- Profile slot 8, 10
- Material Steel, galvanized
- Packaging unit 100
Welcome to Gavilion
-
Australia
- Login / Register
Browse Categories
Connection elements

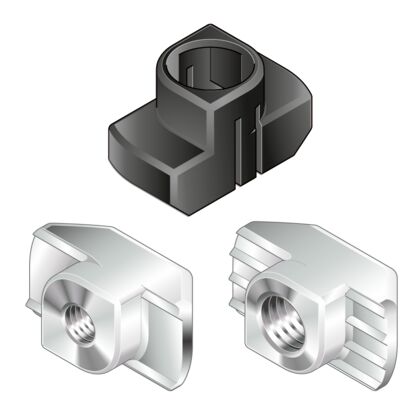

T-nut
Specifications
- Material PA, Stainless steel, Steel, galvanized
- Packaging unit 10, 100
- Profile slot 6, 8, 10
- ESD Yes
Downloads

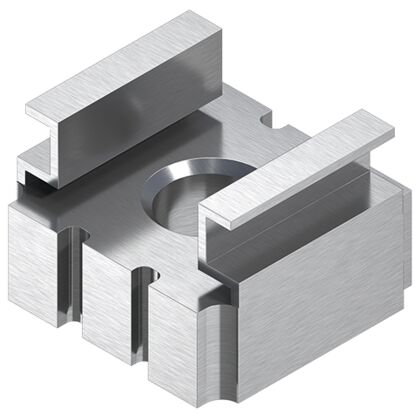

Cage nut
Collar screw
Specifications
- ESD Yes
- Height 26 mm, 28 mm
- Length 21 mm
- Length [L] 18 mm, 20 mm
Downloads
Lifting eye bolt
Specifications
- Height 40 mm, 75 mm
- Length 40 mm, 45 mm, 56 mm, 80 mm, 90 mm
- Packaging unit 1
- Thread size M12
Downloads

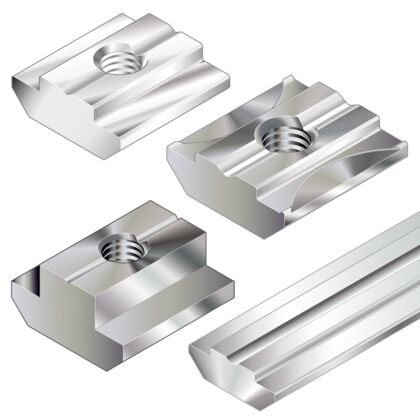

Sliding block, accessories
Specifications
- Height 5 mm, 8 mm, 18 mm
- Length 8 mm, 15 mm, 21 mm
- Material Spring steel, stainless
- Packaging unit 100
Downloads
Expanding nut
Specifications
- Color Black, Signal gray (similar to RAL 7004)
- Height 9 mm, 10 mm
- Length 12 mm, 35 mm
- Material PA
Downloads
Parallel connector
Specifications
- Diameter D 7.8 mm, 9.8 mm
- Height 25 mm, 45 mm
- Length 16 mm, 20 mm
- Length [l] 16 mm, 20 mm
Downloads

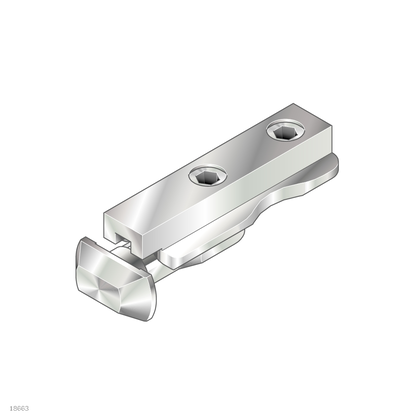

Coupling
Specifications
- Bending moment 1 35 Nm, 110 Nm
- ESD Yes
- Height 10 mm, 20 mm
- Length 46 mm, 170 mm, 180 mm
Downloads

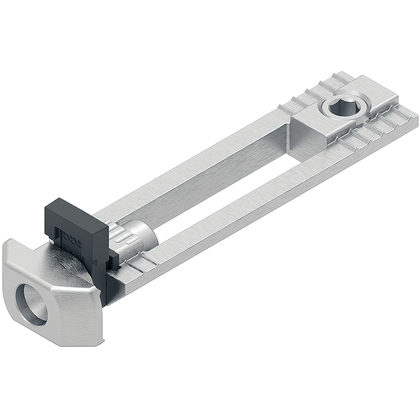

Slot connector
Specifications
- Bending moment 1 35 Nm, 110 Nm
- ESD Yes
- Height 40 mm
- Length 150 mm
Downloads

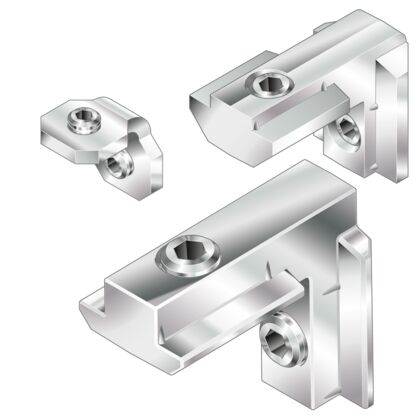

Inner bracket
Specifications
- ESD Yes
- Fastening material 2x headless setscrew ISO 913 M8x12, 2x headless setscrew ISO 4027 M4x6, 2x headless setscrew ISO 913 M6x8
- Height 10 mm, 40 mm, 42 mm
- Length 70 mm, 90 mm, 115 mm
Downloads

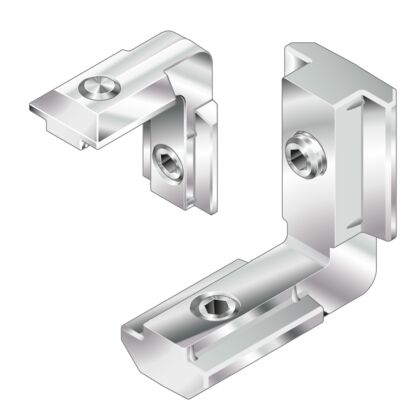

Inner bracket R
Specifications
- Bending moment 1 10 Nm, 50 Nm, 100 Nm
- ESD Yes
- Fastening material 1x headless setscrew DIN 913 M6x8,1x headless setscrew DIN913 M6x12, 2x headless setscrew ISO 913 M5x5, 2x headless setscrew ISO 913 M8x12, 2x headless setscrew ISO 913 M6x8
- Height 4 mm, 15 mm, 20 mm, 40 mm
Downloads

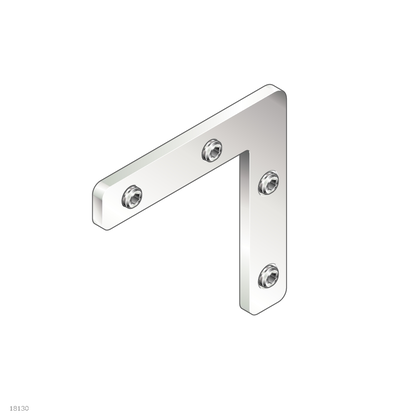

Miter bracket
Specifications
- ESD Yes
- Fastening material 4x headless setscrew ISO 4027 M4x5, 4x headless setscrew ISO 913 M8x8, 4x headless setscrew ISO 913 M10x10
- Height 2.5 mm, 3 mm, 20 mm
- Length 60 mm, 85 mm, 200 mm
Downloads

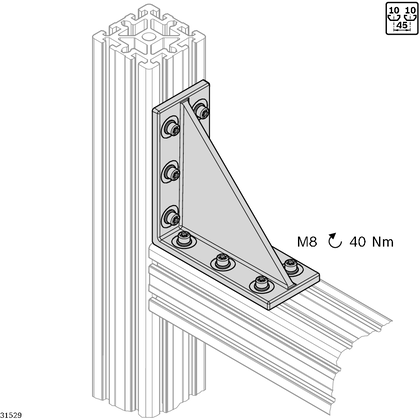

Heavy-duty connector
Specifications
- ESD Yes
- Height 0.09 mm, 180 mm
- Length 170 mm, 180 mm
- Material Cast iron, galvanized, Steel, galvanized
Downloads

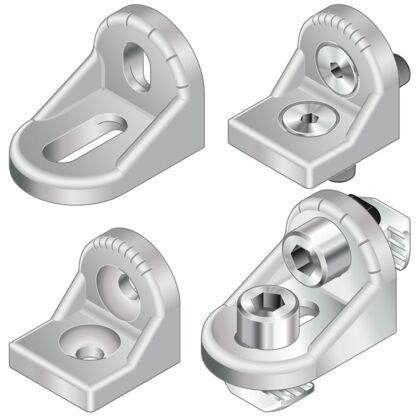

Bracket R
Specifications
- Dimensions 28x38, 35x38, 40x43
- ESD Yes
- Material Diecast aluminum, Diecast aluminum, painted, Diecast zinc, Diecast zinc, painted
- Profile slot 10, 810
Downloads

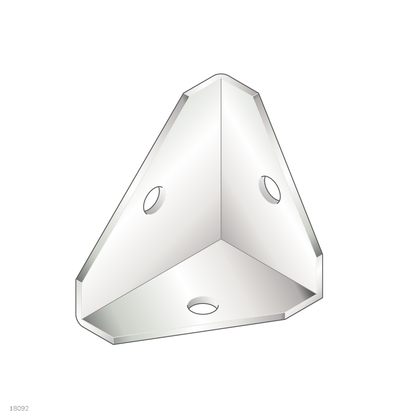

Metal bracket, supporting bracket
Specifications
- Dimensions 60x60x42, 103x103x37
- ESD Yes
- Height 37 mm, 40 mm
- Length 60 mm, 103 mm
Downloads

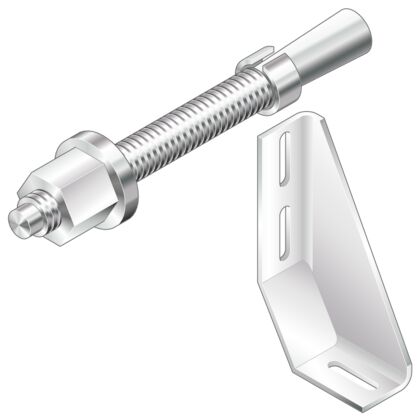

Foundation bracket
Specifications
- Length [L] 80 mm, 160 mm, 210 mm
- Length [l1] 31 mm, 65 mm, 91 mm
- Material Sheet steel, galvanized, Sheet steel, galvanized and transparent chromated, Steel, galvanized
- Packaging unit 20, 100
Downloads

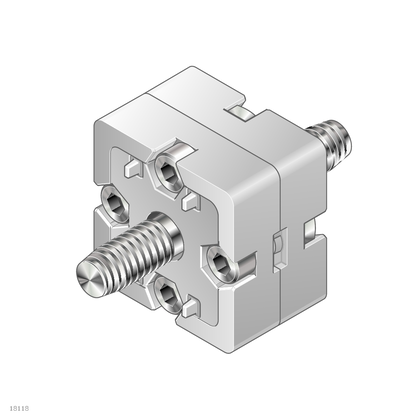

End connector
Specifications
- Bending moment 1 81 Nm, 170 Nm, 180 Nm, 200 Nm
- Dimensions 30x30, 40x40, 45x45, 50x50
- ESD Yes
- Fastening material 2x screw S12x30,4x cylinder head screw ISO4762 M6x20,4x hexagon nut ISO4032 M6, 2x cylinder head screw DIN7984 M8x30,4x cylinder head screw DIN7984 M5x25,4x hexagon nut DIN934 M5, 2x screw S12x30,4x cylinder head screw ISO4762 M6x25,4x hexagon nut ISO4032 M6
Downloads

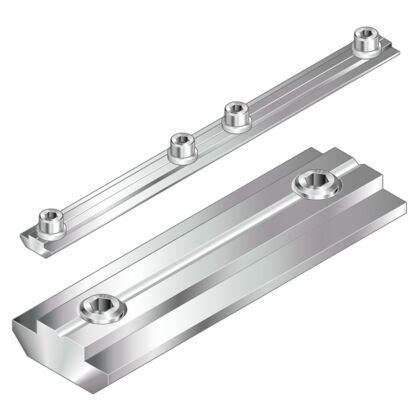

Profile connector
Specifications
- Fastening material 2x headless setscrew DIN913 M6X10, 4x cylinder head screw ISO4762 M6x10,4x washer DIN7349 6.4, 4x hexagon screw ISO4017 M8x14,4x lock washer S8
- Height 10 mm, 20 mm, 105 mm
- Length 50 mm, 200 mm, 219 mm
- Material Steel, galvanized
Downloads

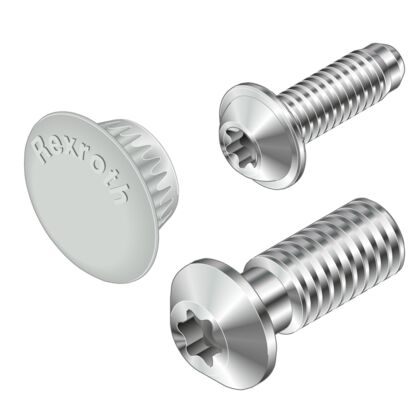

Central bolt
Specifications
- Material PA, Steel, galvanized
- Packaging unit 100
- Height 5.9 mm, 6.05 mm, 6.5 mm, 7 mm, 10 mm, 13 mm, 30 mm, 35 mm
- Length 10 mm, 12 mm, 15 mm, 20 mm, 40 mm, 100 mm
Downloads

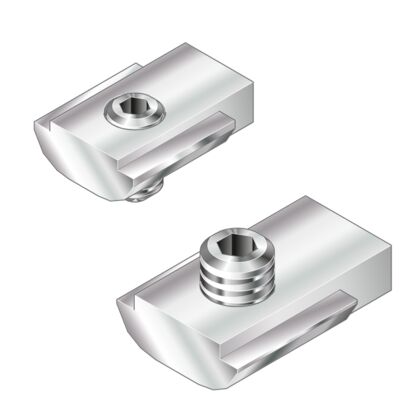

Anti-torsion element
Specifications
- Fastening material 1x headless setscrew DIN916 M5x18, 1x headless setscrew ISO4029 M6x12
- Height 12 mm
- Length 100 mm
- Material Steel, galvanized
Downloads

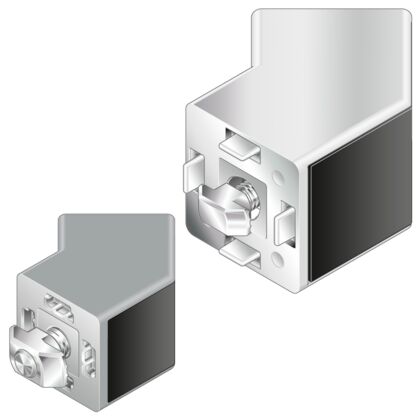

Connector 45°
Specifications
- ESD Yes
- Material Cast aluminum, Cast aluminum, painted, Diecast zinc, Diecast zinc, painted
- Material information Connector 45° Cast aluminum,Cover cap: PA, black,Fastening material: Steel, galvanized, Connector 45° designLINE: Cast aluminum, painted,Cover cap: PA, black,Fastening material: Steel, galvanized, Connector 45° designLINE: cast aluminum, painted,Fastening material: steel, galvanized, Connector 45° designLINE: Diecast zinc, painted,Centering piece, cover cap: PA, black,Fastening material: Steel, galvanized, Connector 45° designLINE: diecast zinc, painted,Fastening material: steel, galvanized, Connector 45° Diecast zinc,Centering piece, cover cap: PA, black,Fastening material: Steel, galvanized, Connector 45°: cast aluminum,Fastening material: steel, galvanized, Connector 45°: diecast zinc,Fastening material: Steel, galvanized
- Profile slot 8, 10
Downloads

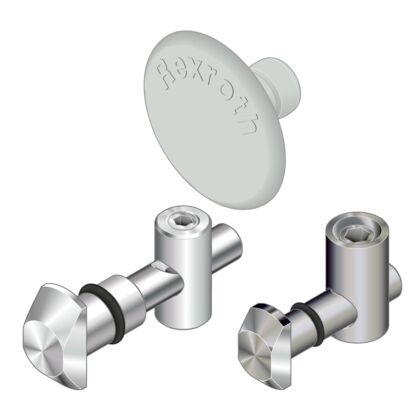

Quick connector
Specifications
- Diameter D 8 mm, 9.8 mm, 11 mm, 17 mm
- Height 4.5…50 mm
- Length 11…105 mm
- Material PE, Steel, Steel, galvanized, Steel, stainless
Downloads

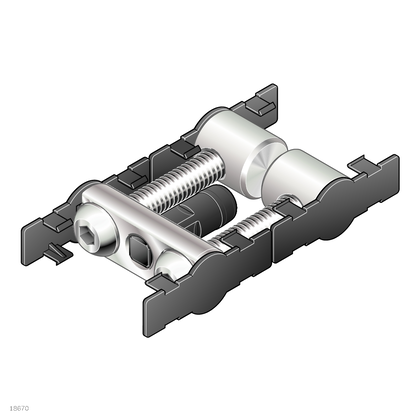

Longitudinal end connector
Specifications
- Color Signal gray
- Diameter D 17 mm
- ESD Yes
- Height 15 mm, 20 mm
Downloads
Bolt connector
Specifications
- Height 3 mm, 6.5 mm, 11 mm, 17 mm, 40 mm
- Length 23.5…115 mm
- Material PP, Steel, galvanized
- Packaging unit 10, 100
Downloads

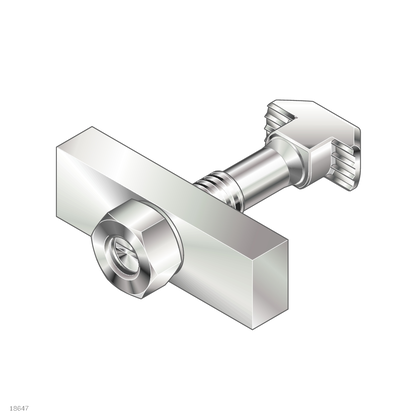

QV mounting kit
Specifications
- Height 15 mm
- Length 45 mm
- Material Steel, galvanized
- Modular dimension 45 mm
Downloads
Sliding block, sliding block profile
Specifications
- Dimension h 3 mm, 4 mm, 4.8 mm, 5.3 mm, 6 mm, 10.5 mm
- Dimension h1 0.9 mm, 1 mm, 1.5 mm, 2 mm, 5 mm
- Length [l] 12 mm, 15 mm, 16 mm, 20 mm, 24 mm, 30 mm, 1000 mm
- Material Steel, galvanized, Steel, stainless
Downloads

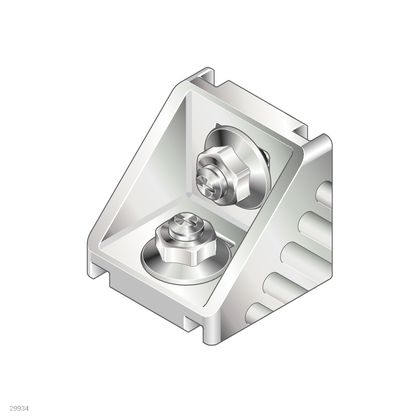

Bracket
Specifications
- Height 2…170 mm
- Length 8…350 mm
- Material Diecast aluminum, vibratory ground, Diecast aluminum, vibratory ground and painted, PA, PP
- Width 2…250 mm
Downloads

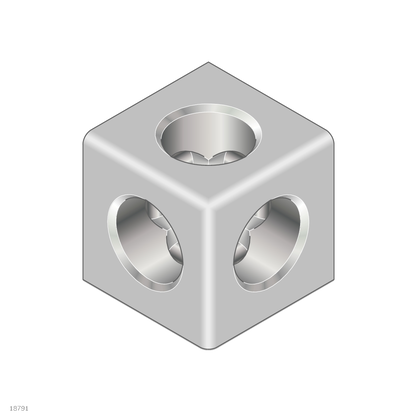

Cubic connector
Specifications
- Height 5…54 mm
- Length 10…105 mm
- Material Diecast aluminum, Diecast aluminum, painted, PP, Steel, galvanized
- Width 10…95 mm
Downloads

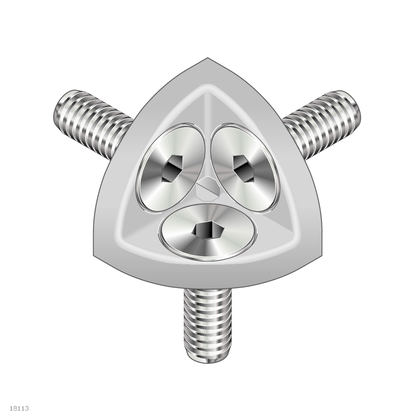

Corner bracket
Specifications
- Height 20 mm, 30 mm, 40 mm, 45 mm
- Length 20 mm, 30 mm, 40 mm, 45 mm, 70 mm, 90 mm, 100 mm
- Material Diecast zinc, PP
- Width 20 mm, 30 mm, 40 mm, 45 mm, 90 mm
Downloads

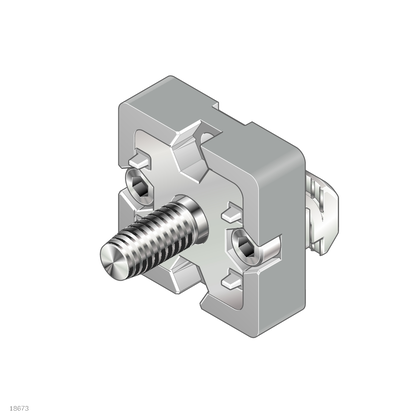

T-connector
Specifications
- Bending moment 1 80 Nm, 150 Nm, 170 Nm, 200 Nm
- Dimensions 30x30, 40x40, 45x45, 50x50
- ESD Yes
- Fastening material 1x cylinder head screw DIN7984 M8x30,2x cylinder head screw DIN7984 M5x16,2x T-nut groove 8 M5, 1x screw S12x30,2x cylinder head screw DIN7984 M6x20,2x T-nut groove 10 M6
