Air-supply elements

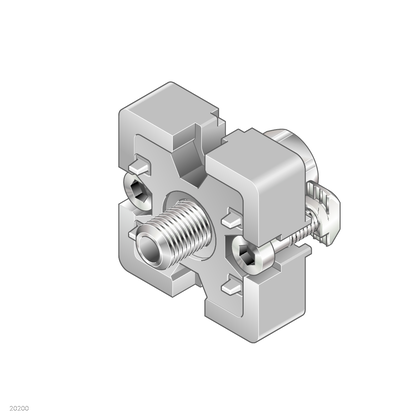

T-connector 45 Pneu
Specifications
- Height 40 mm
- Fastening material 2 x cylinder head screw ISO4762-M6x18,2x T-nut groove 10 M6
- Material information T-connector: Diecast aluminum,Seal: NBR
- Scope of delivery Incl. fastening material, seals for standard and light profiles
Downloads

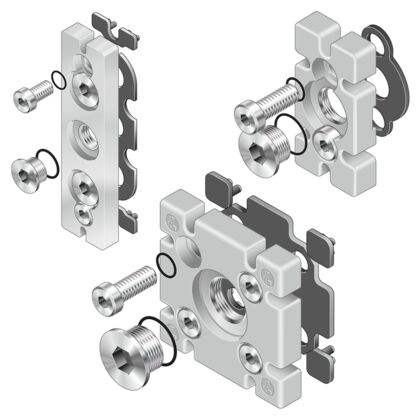

Flanged plate
Specifications
- Packaging unit 1, 2
- Material Aluminum, Diecast aluminum
- Length 105 mm, 115 mm, 220 mm
- Material information Flanged plate: Aluminum,Seal: NBR,Fastening material: Steel, galvanized, Flanged plate: Diecast aluminum,Seal: NBR,Fastening material: Steel, galvanized
Downloads

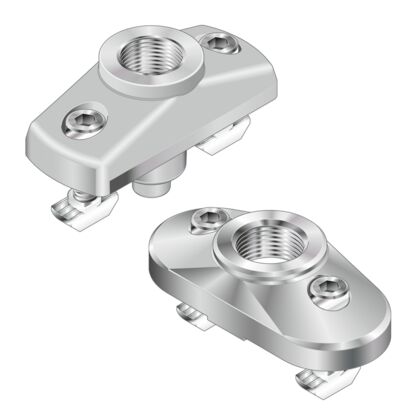

Connection piece
Specifications
- Width 35 mm, 60 mm
- Length 75 mm, 115 mm
- Material information Connection piece: Diecast zinc,Seal: NBR, Flanged plate: Diecast aluminum,Seal: NBR
- Profile slot 10
Downloads

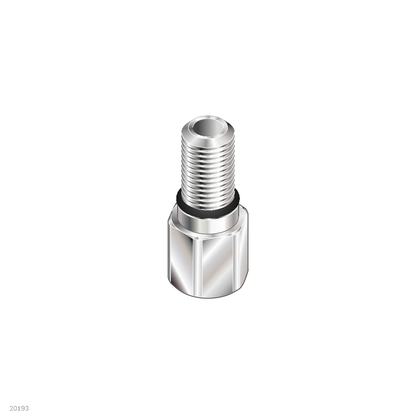

Connection screw fitting M12-1/4"
Specifications
- Packaging unit 10
- Material Steel
- Length 115 mm
- Material information Connection screw fitting: Steel, galvanized,Seal: PVC, hard
Downloads
Longitudinal end connection
Specifications
- Height 10 mm, 15 mm
- Width 100 mm, 190 mm
- Required accessories Longitudinal end connector for profile connection
- Profile slot 10
Downloads

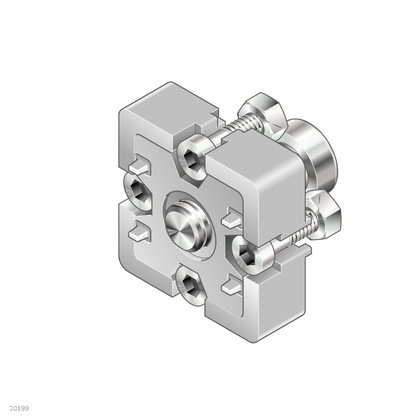

Longitudinal end connector 45 Pneu
Specifications
- Material Diecast aluminum
- Packaging unit 1
- Material information Longitudinal end connector: Diecast aluminum,Seal: NBR
- Fastening material 4 x cylinder head screw ISO4762-M6x20,4x hexagon nut ISO4032-M6,2x screw M12x30
