Standard manifolds with cartridges

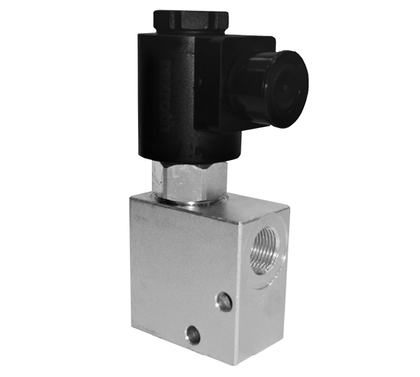

Line mount

Specifications

• Maximum operating pressure 210 bar, 350 bar
• Maximum flow 4.2…360 l/min
• Direct - Pilot Direct acting, External pilot operated, Pilot operated
• Hydraulic fluid HL,HLP

Downloads

• Data Sheet

Products

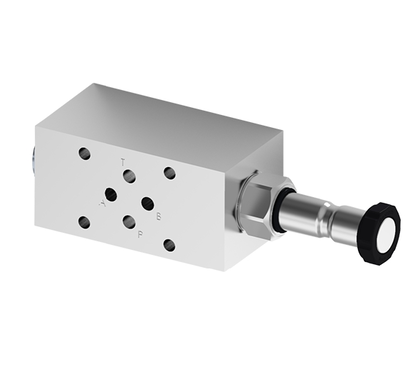

Sub plate

Specifications

• Maximum operating pressure 210 bar
• Maximum flow 20 l/min, 30 l/min, 40 l/min
• Hydraulic fluid HL,HLP
• Nominal flow 20 l/min, 30 l/min, 40 l/min

Products

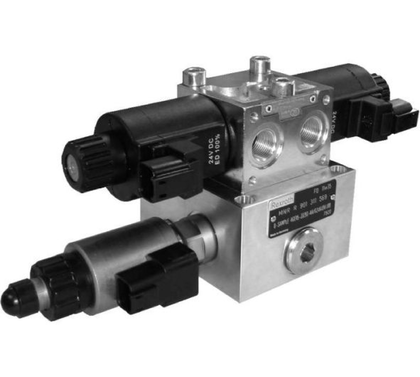

Standard functions

Specifications

• Component series HICFP, Remote control plate
• Maximum operating pressure 100 bar
• Maximum flow 5 l/min, 40 l/min
• Cavity M22x1,5, M24x1,5

Downloads

• Data Sheet

Products
