The modular units for transportation control are used to control the flow of the workpiece pallets on the transfer system. The transportation control involves stopping and separating workpiece pallets, inquiring the position of workpiece pallets, controlling all function processes, etc.

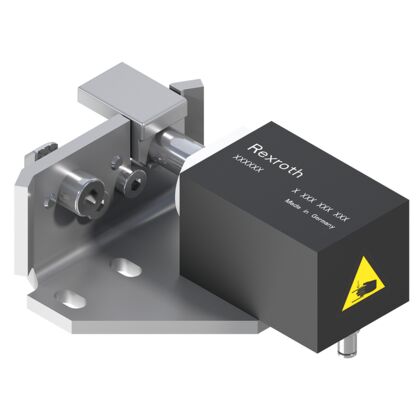

Scope of delivery Incl. fastening material,Including DA 2/100 damper, Including fastening material for installation on ST 2/... conveyor section or BS 2/... belt section.

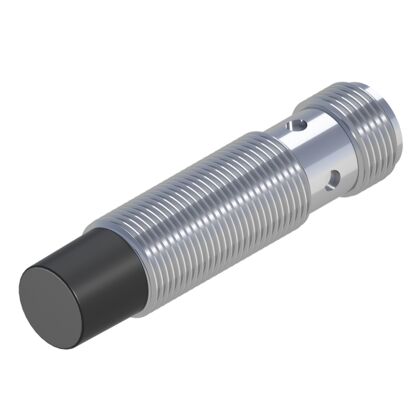

Required accessories Sensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation,Sensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation, WI 2/X or WI 2/D rocker
Scope of delivery Incl. all fastening material to mount on ST 2/... conveyor section, Incl. all fastening material to mount on ST 2/... conveyor section,Pneumatic elements

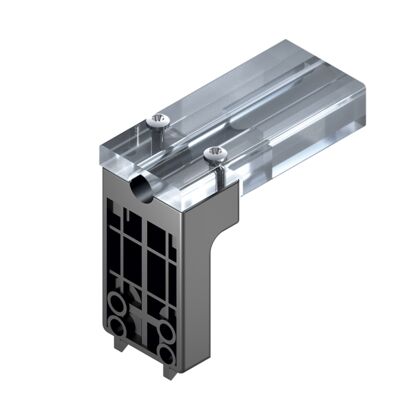

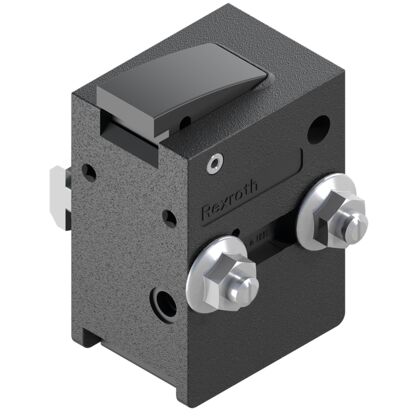

Recommended accessories VE 2/RS Return Stop,Switch bracket SH 2/..., VE 2/RS Return Stop,Switch bracket SH 2/...,Position sensor
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min 30 kg, 50 kg, 100 kg
Scope of delivery Incl. all fastening material to mount on ST 2/... conveyor section, Incl. fastening material for assembly on the conveyor section ST 2/..., Incl. fastening material for assembly on the conveyor section ST 2/...,Pneumatic elements
Length 25 mm, 40 mm, 55 mm, 65 mm, 82 mm, 90 mm, 98 mm
Required accessories M12x1 sensor with rated sensing range of S<sub>N </sub>≥ 4 mm, Sensor in flat special shape with rated sensing range S<sub>N</sub> ≥ 4 mm, e. g. Balluff BES 516-347-SA-2-03, Sensor M12, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush, Sensor M12x1, S<sub>N</sub> = 8 mm, L ≥ 44 mm can be installed flush or not flush, Sensor M12x1, S<sub>N</sub> = 8 mm, L ≥ 60 mm can be installed flush or not flush, Sensor M12x1, SN = 8 mm, L ≥ 44 mm can be installed flush or not flush
Height 8 mm, 15 mm, 33 mm, 35 mm, 53 mm, 86 mm, 88 mm
Scope of delivery fastening material included, Incl. fastening material, Incl. fastening material for assembly on conveyor sections ST 2/...
