S20 (IP20)

S20 in protection class IP20 is the flexibly scalable I/O toolkit for shortest cycle times as well as the highest precision and ensures a real-time data flow between the control and peripherals – whether locally on the XM control or as a decentralized I/O station.

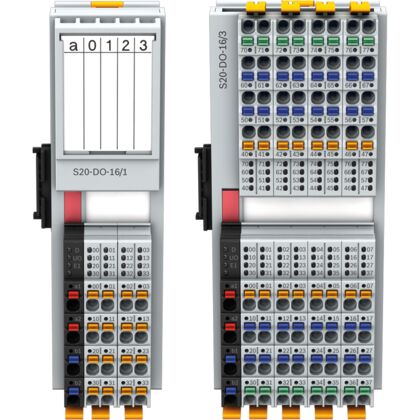

Digital Output Modules

Digital Output Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85

Downloads

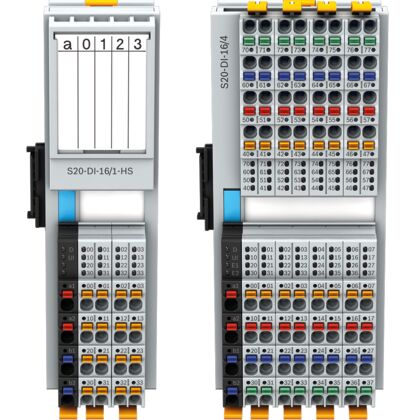

Digital Input Modules

Digital Input Modules

Specifications

International protection code IP20
Number of channels 8, 16, 32, 64
Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)

Downloads

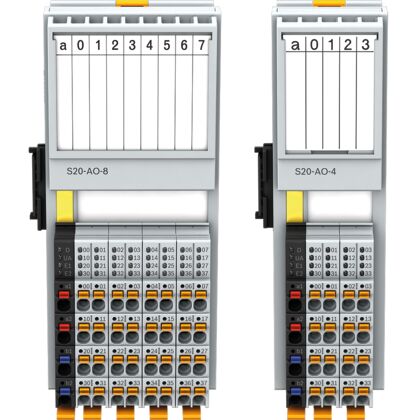

Analog Output Modules

Analog Output Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85

Downloads

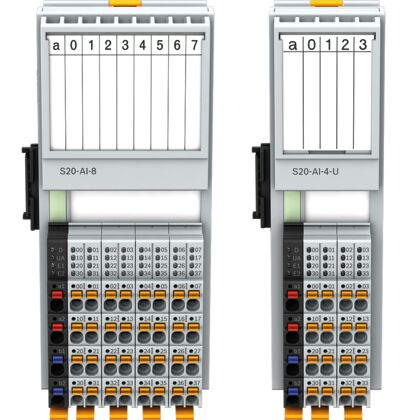

Analog Input Modules

Analog Input Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85

Downloads

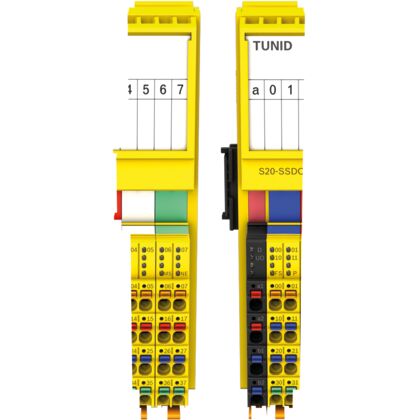

S20 Safety Modules

S20 Safety Modules

Specifications

Air pressure (operation) 70 kPa ... 108 kPa (up to 3000 m above sea level)
Air pressure (storage / transport) 66 kPa ... 108 kPa (up to 3500 m above sea level)
Ambient temperature (during operation) -35 -60
Ambient temperature (storage and transport) -40 -85

Downloads

CAD

S20 System Modules

S20 System Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85

Downloads

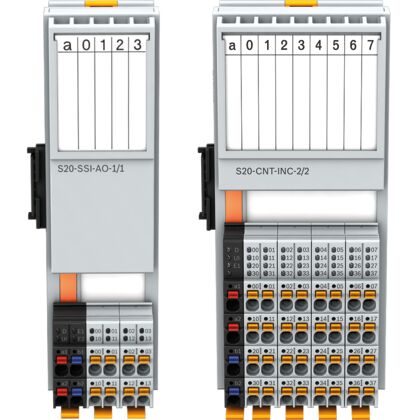

Function Modules

Function Modules

Specifications

Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85
Connection type Push-in
Depth 126.1 mm

Downloads

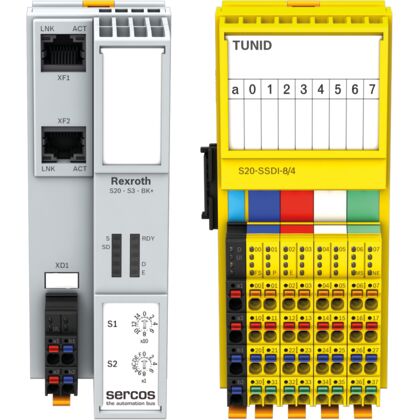

S20 Accessories

S20 Accessories

Specifications

International protection code IP20

Downloads

CAD

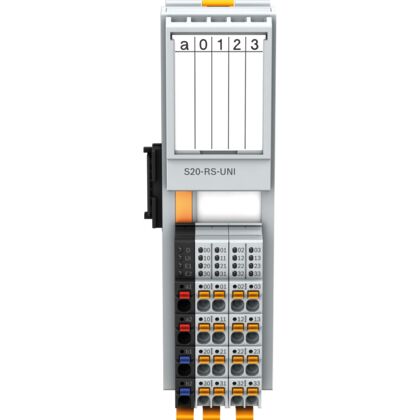

Communicaton Modules

Communicaton Modules

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25 -60
Ambient temperature (storage and transport) -40 -85

Downloads

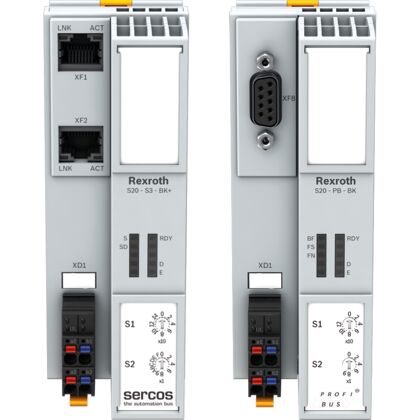

Fieldbus Couplers

Fieldbus Couplers

Specifications

Air pressure (operation) 70 -106 kPa (up to 3,000 m above sea level)
Air pressure (storage / transport) 70 -106 kPa (up to 3,000 m above sea level)
Ambient temperature (during operation) -25-55, -25-60
Ambient temperature (storage and transport) -40 -85

Downloads
