Browse Categories

Sensors

With our sensors and signal transmitters, you get the best equipment for monitoring and/or controlling the hydraulic pressure.

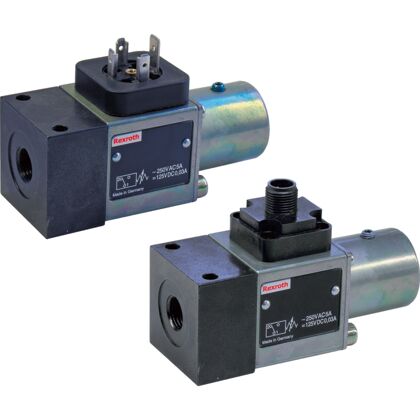

Mechanical pressure switches

Mechanical pressure switches

Specifications

Component series HED 5, HED 8
Maximum operating pressure 315 bar, 350 bar, 400 bar, 630 bar
Conformity UKCA – RoHS Directive SI2012/3032,UKCA – Low-Voltage Directive SI2016/1091,CE – RoHS Directive 2011/65/EU,CE – Low-Voltage Directive 2014/35/EU, UKCA,RoHS,CE
Connection diagram Flange connection, Flange connection (ISO 16873), Internal thread G1/4, Subplate mounting

Downloads

Sensors, pressure sensors

Sensors, pressure sensors

Specifications

Component series HM20
Maximum operating pressure 10 bar, 50 bar, 100 bar, 160 bar, 315 bar, 630 bar
Conformity CE,UL,UKCA,RoHS,DNV, UKCA – RoHS Directive SI2012/3032,UKCA – Electromagnetic compatibility (EMC) SI2016/1091,CE – RoHS Directive 2011/65/EU,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU, UKCA,RoHS,CE
Connection diagram Male thread G1/4

Downloads

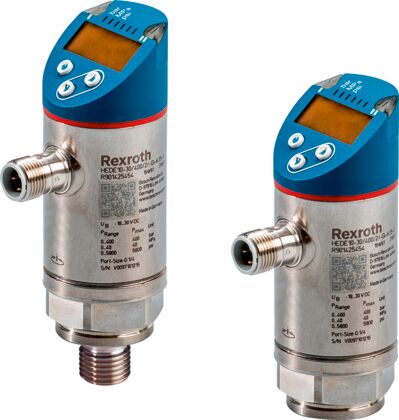

Electronic pressure switches

Electronic pressure switches

Specifications

Component series HEDE10, HEDE11A1
Maximum operating pressure 100 bar, 250 bar, 400 bar
Conformity UKCA – RoHS Directive SI2012/3032,UKCA – Electromagnetic compatibility (EMC) SI2016/1091,CE – RoHS Directive 2011/65/EU,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU, UKCA,RoHS,CE
Connection diagram Internal thread G1/4, Male thread G1/4

Downloads

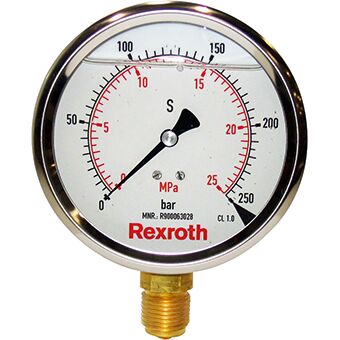

Sensors, pressure gauges

Sensors, pressure gauges

Specifications

Component series ABZMM
Maximum operating pressure 10…1000 bar
Connection diagram Male thread G 1/2 B, Male thread G 1/4 B
Hydraulic fluid HLP,HFC,HFDR,HFDU,HETG,HEES,HEPG

Downloads

Level sensors

Level sensors

Specifications

Component series ABZMS-35, ABZMS-37, ABZMS-40
Maximum operating pressure 1 bar
Electric connection description Connector, 4-pole (3 + PE) according to EN 175301-803, Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101, Connector, 7-pole (6 + PE) according to EN 175201-804
Electrical connector Connector, 4-pole (3 + PE), Connector, 4-pole, M12 x 1, coding A, Connector, 7-pole (6 + PE)

Downloads

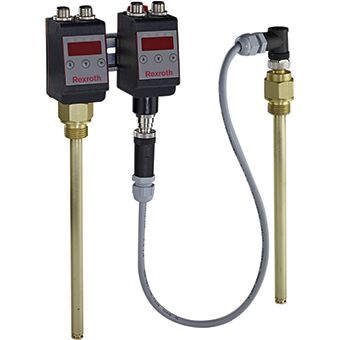

Temperature sensors

Temperature sensors

Specifications

Component series ABZMT
Maximum operating pressure 5 bar, 10 bar
Electric connection description Connector, 4-pole, M12 x 1, coding A according to EN 61076-2-101
Electrical connector Connector, 4-pole, M12 x 1, coding A

Downloads

Spare parts for sensors

Spare parts for sensors

---
