IMS integrated measuring system

Integrating the measuring technology into the linear guide results in a mechatronic system that combines the ability to guide mechanical loads and to measure length in one product. No external measuring systems are needed.

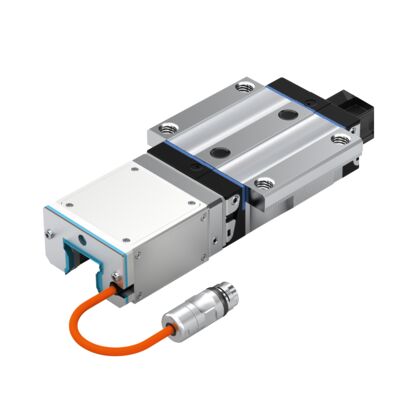

Ball runner blocks IMS-A

Ball runner blocks IMS-A

Specifications

Accuracy class P, SP
Ball chain With/without ball chain
Cable length 1 m
Connector type RGS 1714, RGS 1722, M12 / 8-pin (only DRIVE-CLiQ), M23 / 17-pin (only FANUC)

Downloads

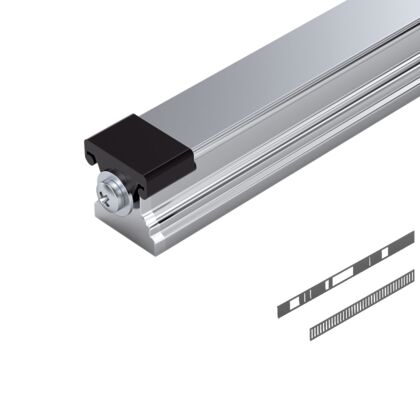

Ball guide rails IMS-A

Ball guide rails IMS-A

Specifications

Accuracy class P, SP
Accuracy class scale A3: 3 µm/m, A5: 5 µm/m
Guide rail cover Cover strip and protective caps, plastic caps
Max. length 4500 mm

Downloads

Ball runner blocks IMS-I

Ball runner blocks IMS-I

Specifications

Accuracy class P, SP
Ball chain With/without ball chain
Cable length 1 m
Connector type RGS 1714, RGS 1722, M12 / 8-pin (only DRIVE-CLiQ), M23 / 17-pin (only FANUC)

Downloads

Ball guide rails IMS-I

Ball guide rails IMS-I

Specifications

Accuracy class P, SP
Accuracy class scale A3: 3 µm/m, A5: 5 µm/m
Guide rail cover Cover strip and protective caps, plastic caps
Max. length 4500 mm

Downloads

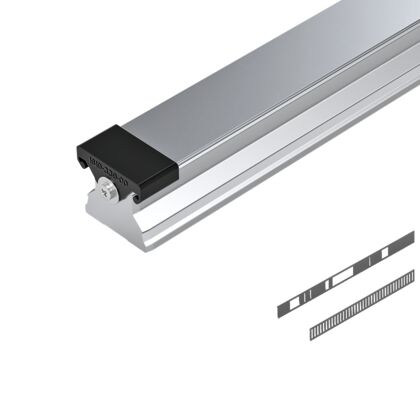

Roller guide rails IMS-A

Roller guide rails IMS-A

Specifications

Accuracy class P, SP
Accuracy class scale A3: 3 µm/m, A5: 5 µm/m
Guide rail cover Cover strip and protective caps, plastic caps, steel caps
Max. length <lt/>4000 mm
