Product guide

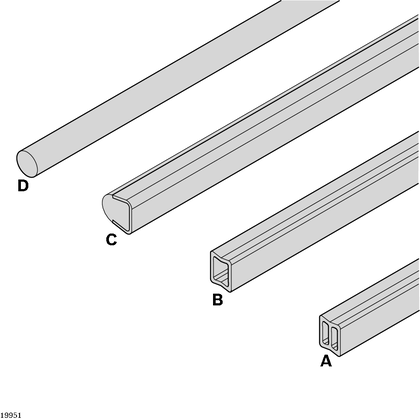

Profile rail for lateral guides

Specifications

• Material Aluminum, anodized, HDPE, PA, PE-UHMW, conductive, Steel, stainless, Steel, stainless/PE
• Length 1 mm, 18 mm, 43 mm, 80 mm, 100 mm, 325 cm, 3000 mm
• Color Black, Gray, Natural
• Condition on delivery Packaging unit in standard length, Single rod in standard length, Variable length

Downloads

• Data Sheet

Products

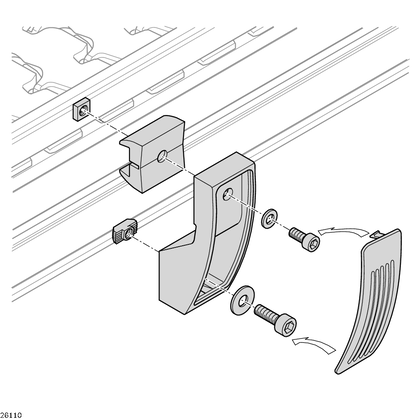

Holder for lateral guides, fixed

Specifications

• Color Black
• Material PA
• Height 7.5 mm, 60 mm
• Length 30 mm, 125 mm

Downloads

• Data Sheet

Products

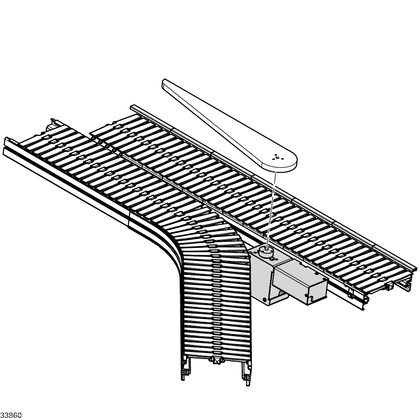

Universal diverter

Specifications

• Height 195 mm
• Length 315 mm
• Material Steel/aluminum/PC
• Required accessories Diverter arm,End stop (open/branch: against lateral guide or on user-side),For the cylinder:<LineBreak/>- 2x throttle non-return valve G1/8"<LineBreak/>- 2x sensors<LineBreak/>- 2x sensor supports<LineBreak/>- 1x 3/2 directional control valve,Cylinder description ISO 6432 with:<LineBreak/>- Pistons ø25<LineBreak/>- Piston rod thread M10x1.25<LineBreak/>- Connections G1/8"<LineBreak/>- Piston rods ø10<LineBreak/>- Cylinder outer thread M22x1.5

Downloads

• Data Sheet
• Mounting Instructions

Products

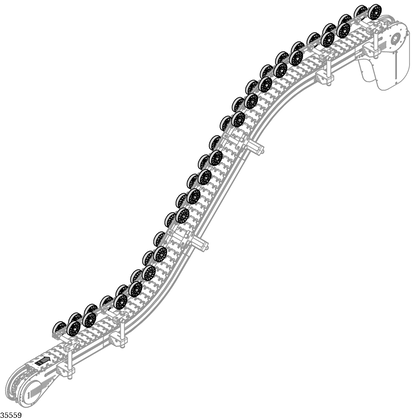

Pressure roller

Specifications

• Diameter D 70 mm
• Material PU
• Material information Roller: PU,Ball bearing: stainless steel, sealed on both sides
• Packaging unit 10

Downloads

• Data Sheet

Products

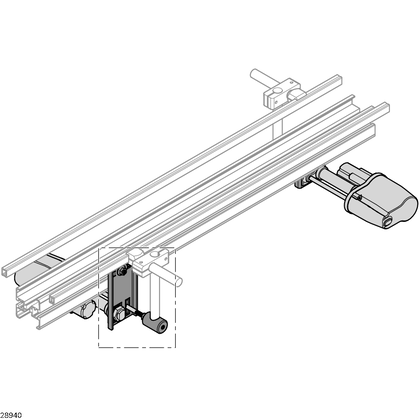

Pneumatically adjustable lateral guide

Specifications

• Delivery information Fully assembled, Not assembled
• Height 40 mm, 70 mm
• Length 140 mm, 300 mm
• Material AL, anodized/PE/steel/steel, galvanized/PA, Steel, galvanized/AL, anodized

Downloads

• Data Sheet

Products

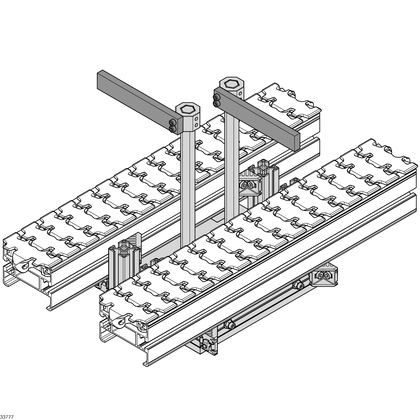

Barrier

Specifications

• Delivery information Partially assembled
• Height 300 mm
• Length 230 mm
• Material Aluminum/steel

Downloads

• Data Sheet

Products

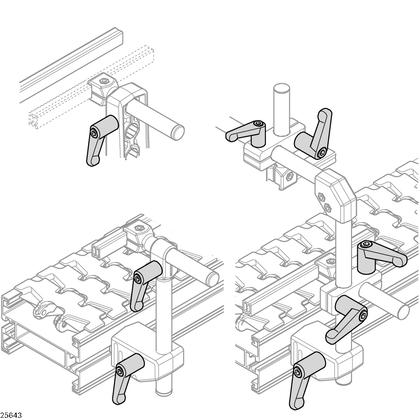

Holder for lateral guides, flexible

Specifications

• Height 10…100 mm
• Length 11…3000 mm
• Width 10…150 mm
• Material PA, Stainless steel, Steel, galvanized, Steel, stainless

Downloads

• Data Sheet

Products
