Leveling feet

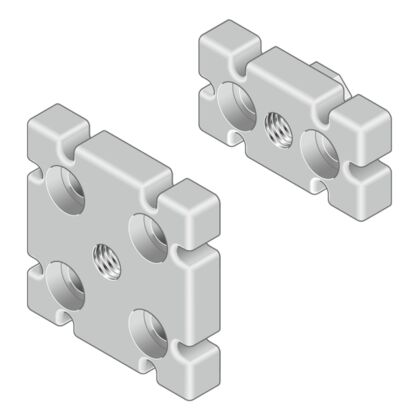

Plate
Specifications
- Scope of delivery Incl. fastening material
- Fastening material 2x cylinder head screw DIN7984-M8x20, 2x cylinder head screw DIN7984-M12x20, 4x cylinder head screw DIN7984-M12x20, 4x cylinder head screw DIN7984-M8x20
- Dimension [l1] 30 mm, 40 mm, 45 mm, 50 mm
- Material information Plate: Diecast aluminum,Fastening material: Steel, galvanized
Downloads
Threaded sleeve

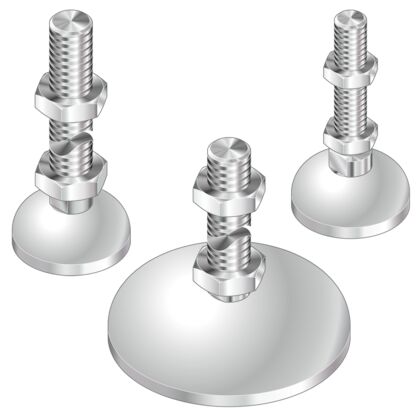

Leveling feet, complete
Specifications
- Recommended accessories bearing ring for when cover caps with a hole are used
- Width 20 mm, 30 mm, 44 mm, 58 mm, 90 mm, 340 mm
- Height 18…210 mm
- Length 20 mm, 30 mm, 44 mm, 58 mm, 90 mm, 160 mm, 200 mm, 265 mm
