Flow rack systems

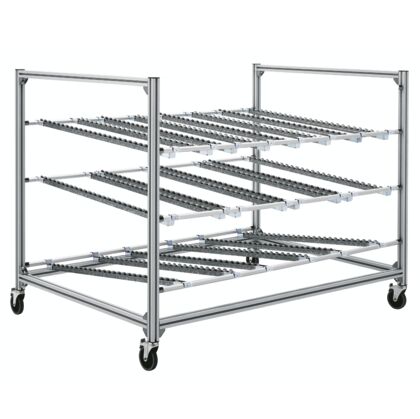

XLean flow rack

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Rollers with Ø28 mm with/without roller flange
• Cross tie type [PT] Tubular cross tie, tubular cross tie with bracket, double tubular cross tie
• Flow rack system depth max [T] 6000 mm

Downloads

• Data Sheet
• Manual

Products

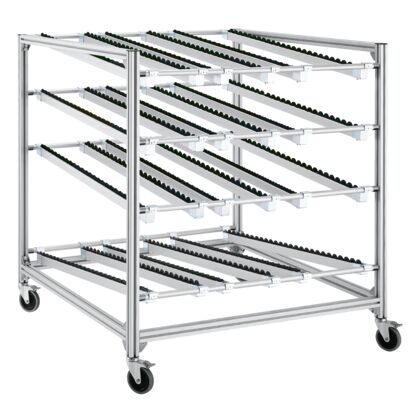

Lean flow rack

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Rollers with Ø32 mm with/without roller flange, various spacing, slide rails with/without border, roller elements with/without border
• Cross tie type [PT] Tubular cross tie, tubular cross tie with bracket, profile cross tie, double tubular cross tie
• Division of flow rack depth [TT] 1000 , 1500

Downloads

• Data Sheet
• Manual

Products

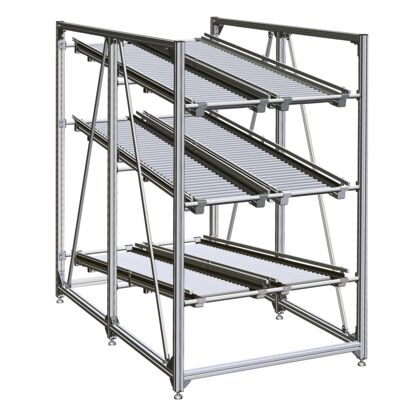

EcoFlow flow rack

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Rollers in plastic, steel, stainless steel
• Conveyor track width max [BF max] 892 mm
• Conveyor track width min [BF min] 200 mm

Downloads

• Data Sheet
• Manual

Products

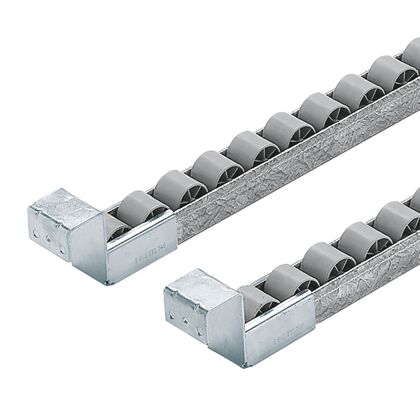

XLean conveyor tracks

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Rollers with Ø28 mm with/without roller flange
• Delivery information Delivered as individual components (not pre-assembled)
• Gradient G 0 ... 10 % (recommended: 6 %)

Downloads

• Data Sheet

Products

XLean conveyor tracks components

Specifications

• Material information Fastening material: Steel, galvanized, Rail: Steel, galvanized,Roller: PP
• Required accessories Round tube D28
• Height 19.4 mm, 36 mm, 40 mm, 42 mm, 92 mm, 400 mm
• Length 40 mm, 49 mm, 92 mm, 4500 mm, 4640 mm

Downloads

• Data Sheet
• Manual

Products

XLean conveyor tracks accessories

Specifications

• Height 25 mm, 31 mm, 38 mm, 100 mm
• Length 39 mm, 40 mm, 105 mm, 152 mm, 180 mm, 250 mm
• Material PP, Steel, galvanized, Strip steel, galvanized
• Packaging unit 20

Downloads

• Data Sheet
• Manual

Products

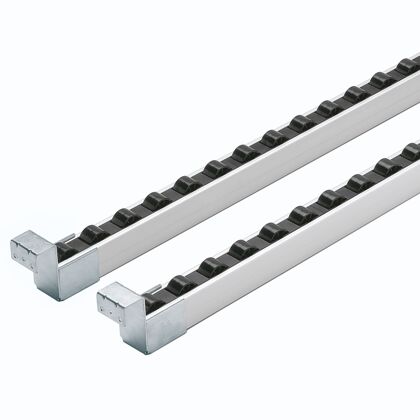

Lean conveyor tracks with rail holder

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Roller element with/without border, Rollers with Ø32 mm with/without roller flange, various spacing, Slide rails with/without border
• Delivery information Fully assembled
• Gradient G 0 ... 10 % (recommended: 6 %)

Downloads

• Data Sheet

Products

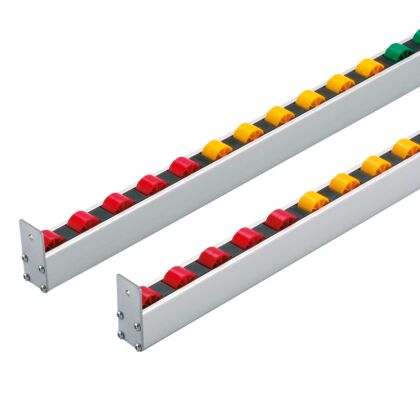

Lean conveyor track with stop plates

Specifications

• Conductivity [ESD] yes, no
• Conveyor medium FM Roller element with/without border, Rollers with Ø32 mm with/without roller flange, various spacing, Slide rails with/without border
• Conveyor track length max [L] 6000 mm
• Conveyor track length min [L] 355 mm

Downloads

• Data Sheet

Products

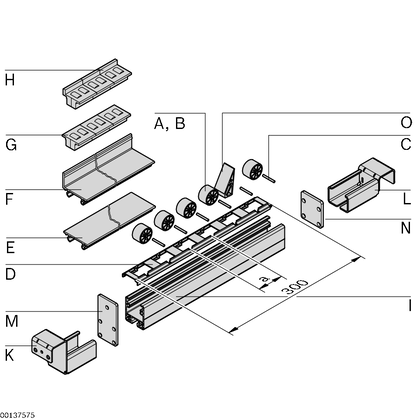

Lean conveyor tracks components

Specifications

• Height 3.5…3000 mm
• Length 30…6200 mm
• Width 10.5…250 mm
• Packaging unit 1, 10, 20, 100

Downloads

• Data Sheet
• Manual

Products

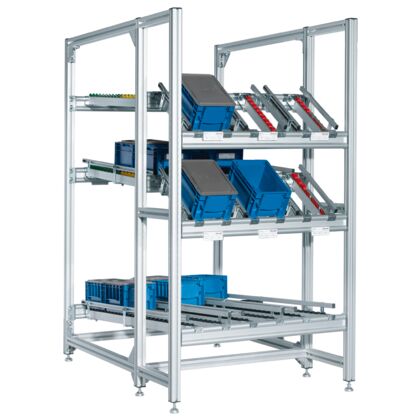

Lean accessories

Specifications

• Height 22 mm, 42.9 mm, 49.4 mm, 100 mm, 110 mm
• Length 93 mm, 104 mm, 205 mm, 227 mm, 250 mm
• Material Diecast aluminum, Steel, galvanized
• Packaging unit 20

Downloads

• Data Sheet
• Manual

Products

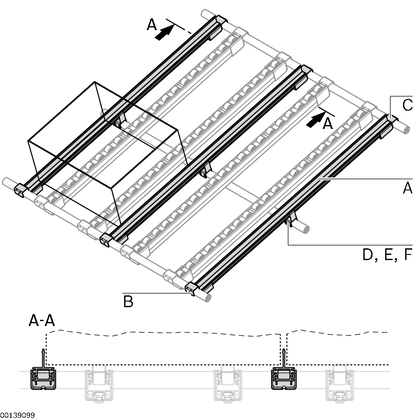

Transport guide

Specifications

• Height 30 mm, 36 mm, 40 mm
• Length 50 mm, 67 mm, 73 mm, 92 mm, 3000 mm
• Packaging unit 20
• Width 32 mm, 40 mm, 52 mm, 62 mm

Downloads

• Data Sheet
• Manual

Products

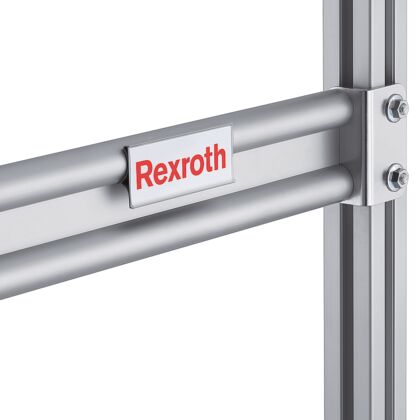

Labeling clip

Specifications

• Color Colorless, Light gray (RAL 7035)
• Condition on delivery Single rod in standard length
• Length [L] 102 mm, 2000 mm
• Material Hard PVC, transparent

Downloads

• Data Sheet

Products

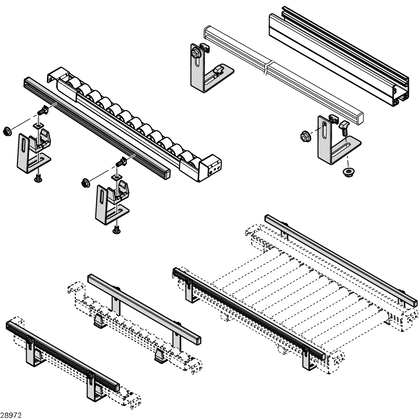

Lateral guide self-assembly elements

Specifications

• Material Aluminum, anodized, PA, PP, Steel, galvanized
• Packaging unit 1, 20
• Height 10 mm, 50 mm, 80 mm
• Length 15 mm, 210 mm, 240 mm

Downloads

• Data Sheet
• Manual

Products

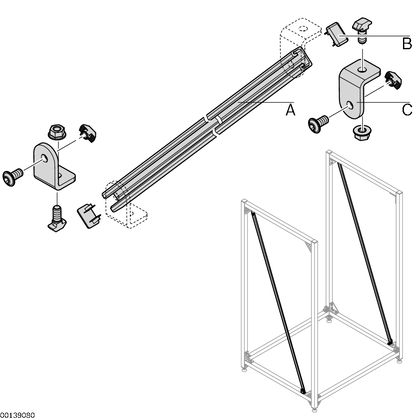

Reinforcement self-assembly elements

Specifications

• Material Aluminum, anodized, PP, Steel, galvanized
• Packaging unit 1, 20
• Profile slot 10
• Height 10 mm, 45.2 mm

Downloads

• Data Sheet

Products

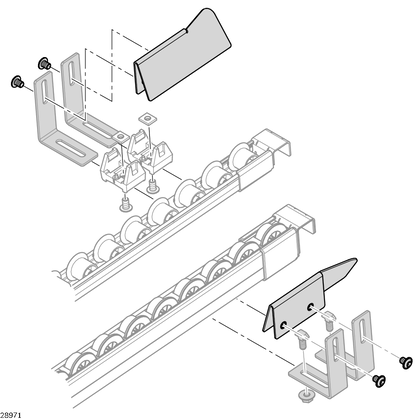

Insertion aid self-assembly elements

Specifications

• Height 50 mm, 80 mm, 240 mm
• Length 151 mm, 210 mm, 240 mm
• Packaging unit 20, Set
• Width 62 mm, 140 mm, 240 mm

Downloads

• Data Sheet
• Manual

Products

Cross ties

Specifications

• Material ABS, Aluminum, anodized, Diecast aluminum, Diecast zinc, PP, Steel, galvanized
• Height 4…270 mm
• Length 45 mm, 60 mm, 85 mm, 170 mm, 180 mm, 6170 mm, 6200 mm
• Width 28 mm, 45 mm, 47 mm, 60 mm, 115 mm, 120 mm, 250 mm, 300 mm

Downloads

• Data Sheet
• CAD

Products
