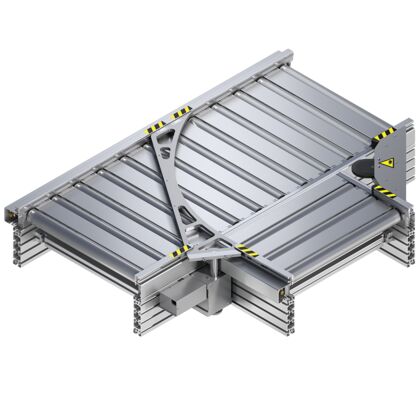

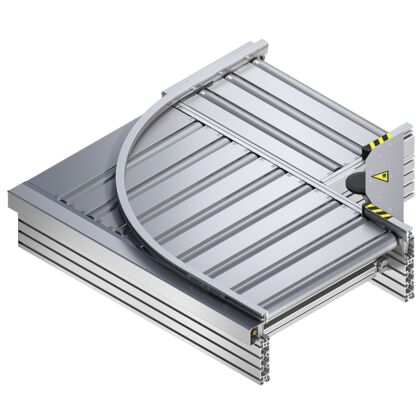

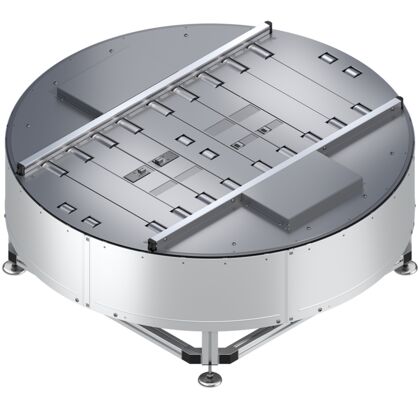

Curves, diverters, rotary units

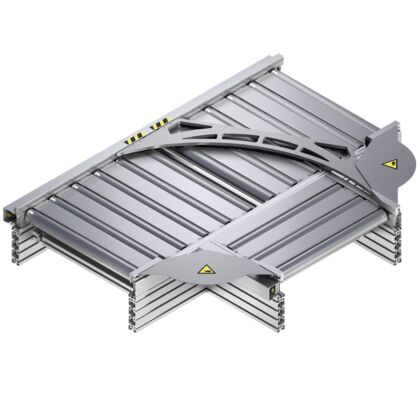

Curves, diverters, and junctions are available for branching transport of workpiece pallets. The main and secondary sections of these modules are separately driven via king shafts. Additional versions of the products in this category are available on request from our modification department (COS@boschrexroth.de).
Specifications
Delivery information Ready-to-install,Optional: Protective covers mounted (protective covers cannot be ordered separately)
Lateral guide material [LG] 1 = Stahl,2 = Kunststoff,3 = Aluminium
Length of main section [l1] 921.5 ,1149,1376.5
Length of secondary section [l2] 382.5 ,415,447
Specifications
Delivery information Ready-to-install,Optional: Protective covers mounted (protective covers cannot be ordered separately)
Lateral guide material [LG] 1 = Stahl,2 = Kunststoff,3 = Aluminium
Length of main section [l1] 130015601820
Length of secondary section [l2] 382.5 ,415,447
Specifications
Delivery information Ready-to-install,Optional: Protective covers mounted (protective covers cannot be ordered separately)
Lateral guide material [LG] 1 = Stahl,2 = Kunststoff,3 = Aluminium
Length of main section [l1] 130015601820
Length of secondary section [l2] 382.5 ,415,447
Specifications
⌀ with protective cover D2, mm 115615161516
⌀ without protective cover D1, mm 114015001500
Belt section length L 100013101180
Delivery information Ready-to-install incl. supports,Protective covers (traversing mechanism and section) mounted optionally; protective covers cannot be ordered separately
