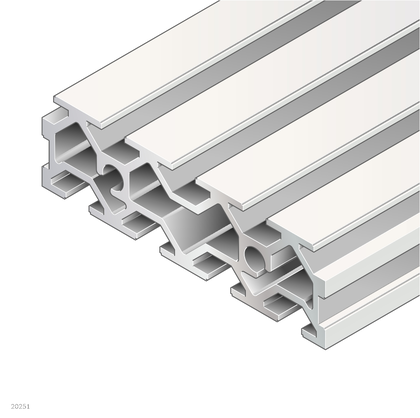

Slotted plate 30x100
Specifications
- Condition on delivery Packaging unit in standard length, Single rod in standard length, Variable length
- Cross-section 30 x100
- Modular dimension 25 mm
- Open slots 7
Welcome to Gavilion
-
Australia
- Login / Register
Browse Categories
Profiles and accessories

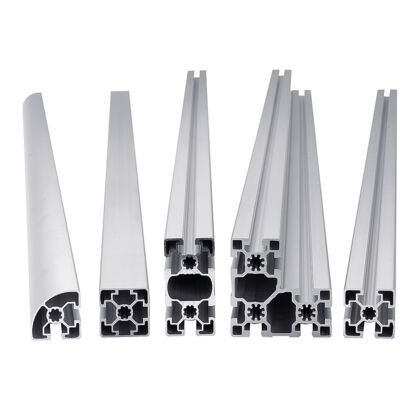

Strut profile
Specifications
- Area moment of inertia in x-direction [lx] 0.5…14065 cm⁴
- Area moment of inertia in y-direction [ly] 0.1…710 cm⁴
- Color Natural
- Condition on delivery Packaging unit in standard length, Profile finishing, Single rod in standard length, Variable length
Downloads

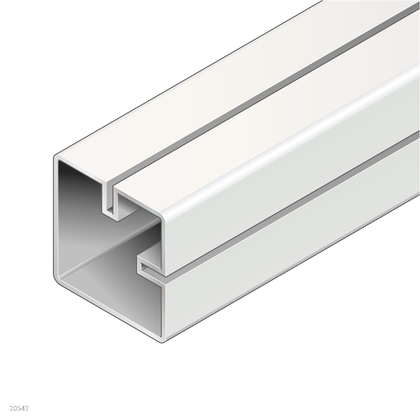

Rectangular tube
Specifications
- Area moment of inertia in x-direction [lx] 15.1 cm⁴
- Area moment of inertia in y-direction [ly] 15.1 cm⁴
- Condition on delivery Packaging unit in standard length, Single rod in standard length, Variable length
- Mass [m] 1.2 kg
Downloads

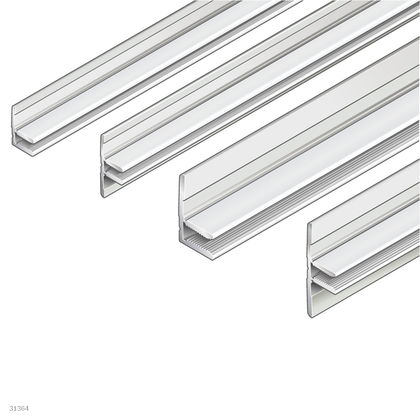

Clamping profile
Specifications
- Condition on delivery Packaging unit in standard length, Variable length
- Delivery unit 1, 10
- Material Aluminum, anodized
- Profile slot 8, 10
Downloads

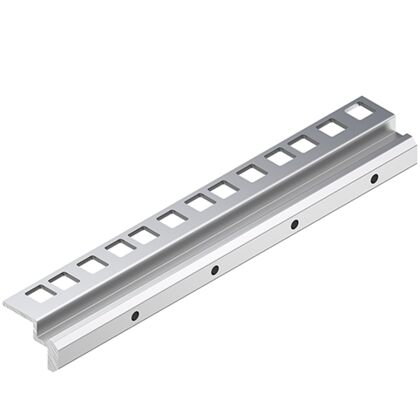

Al angle profile 19"
Specifications
- Material Aluminum, anodized, Steel, galvanized
- Packaging unit 20
- Condition on delivery Packaging unit in standard length
- Delivery unit 10
Downloads

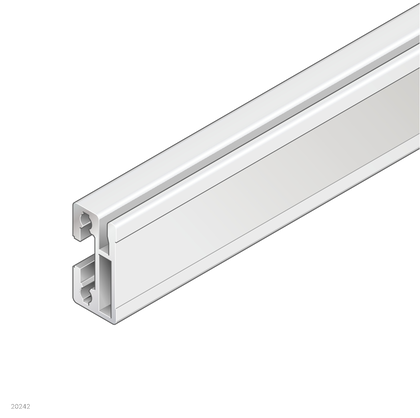

Suspension profile
Specifications
- Area moment of inertia in x-direction [lx] 2 cm⁴
- Area moment of inertia in y-direction [ly] 0.5 cm⁴
- Condition on delivery Packaging unit in standard length, Single rod in standard length, Variable length
- Mass [m] 0.6 kg
Downloads

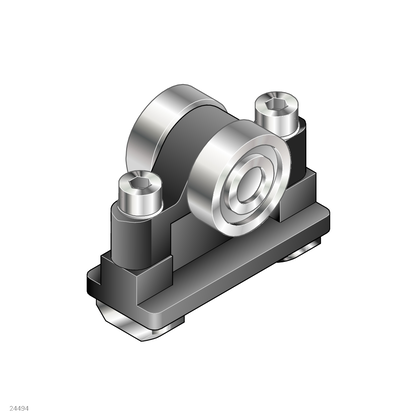

Profile rail, trolley
Specifications
- Height 25 mm, 29 mm, 45 mm, 291 mm
- Length 30 mm, 60 mm, 6170 mm, 6200 mm
- Width 30 mm, 40 mm, 45 mm, 250 mm
- Material Aluminum, anodized, PA
Downloads
Bearing ring
Specifications
- Height 4 mm
- Length 18 mm
- Material Diecast zinc
- Packaging unit 100
Downloads
Cover profiles
Specifications
- Height 3 mm, 3.7 mm, 4 mm, 6 mm, 40 mm
- Length 250 mm, 2000 mm
- Length [L] 2000 mm, 10000 mm
- Material Aluminum, anodized, Hard PVC, PET, PP, Soft PVC
Downloads
Radial compensation
Specifications
- Color Signal gray (RAL 7004)
- Height 13 mm, 17 mm
- Length 30 mm, 40 mm, 45 mm
- Material PA
Downloads
Cover caps
Specifications
- Material Diecast zinc, PP
- Packaging unit 1, 20, 100
- Height 6…90 mm
- Length 15…100 mm
Downloads

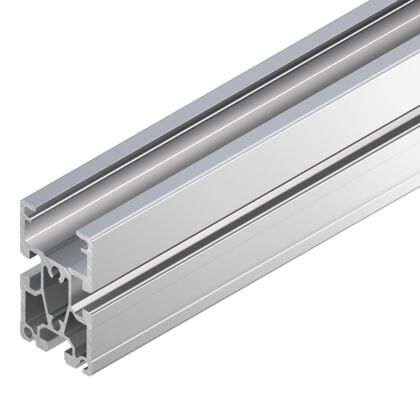

Section profile SP2/R
Specifications
- Area moment of inertia in x-direction [lx] 4.3 cm⁴
- Area moment of inertia in y-direction [ly] 11.7 cm⁴
- Color Natural
- Condition on delivery Variable length
