Mounting of panel elements

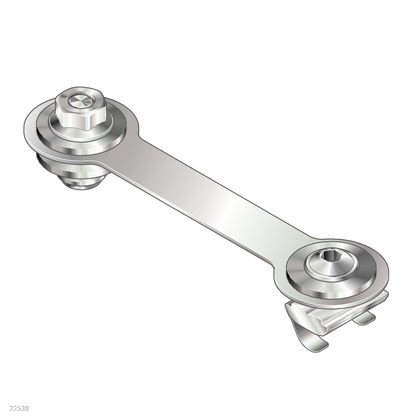

Potential equalizer in panel elements

Specifications

• ESD Yes
• Fastening material Flattened round head screw ISO7380-M6x20,3x washer DIN9021-A6.4,1x flange nut M6,1x flattened round head screw ISO7380-M6x12,1x sliding block 10 M6 SUSPENDED
• Height 32 mm
• Length 117 mm

Downloads

• Data Sheet
• Manual

Products

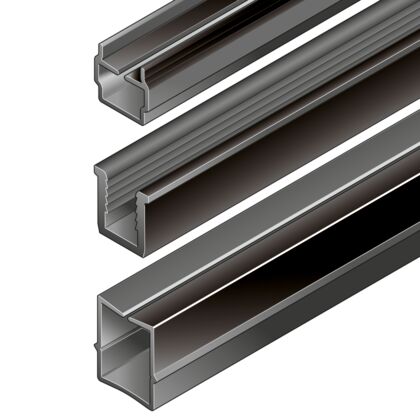

Mounting rim profile

Specifications

• Color Black, Light gray (RAL 7035), Signal gray (RAL 7004)
• Condition on delivery Single rod in standard length
• Height 5.5…2000 mm
• Length 12 mm, 400 mm, 2000 mm, 10000 mm

Downloads

• Data Sheet
• Manual

Products

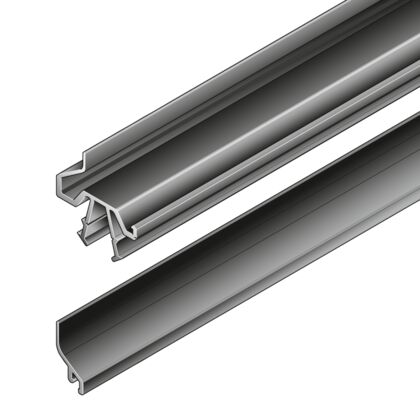

Protective pane profile

Specifications

• Condition on delivery Single rod in standard length
• Dimension [s max] 6 mm, 8 mm
• Dimension [s min] 1.5 mm, 2 mm
• Length [L] 2000 mm

Downloads

• Data Sheet

Products

Variofix block

Specifications

• Material PA, PP
• Mounting type Screws, Screws,Snap-in clip
• Packaging unit 10
• Color Signal gray (RAL 7004)

Downloads

• Data Sheet
• Manual

Products

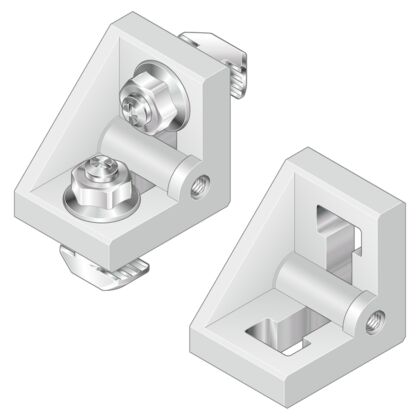

Bracket S

Specifications

• Color Silver
• Dimensions 20x20, 30x30, 40/45
• ESD Yes
• Height 18 mm, 27 mm, 41 mm

Downloads

• Data Sheet

Products

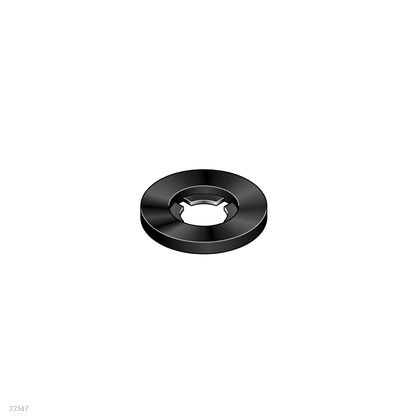

Locking ring

Specifications

• Color Black
• Diameter D 9 mm, 10 mm, 12.5 mm
• Diameter d [mm] 3.4 mm, 4.5 mm, 5.5 mm
• Dimension h 1 mm, 1.5 mm

Downloads

• Data Sheet

Products

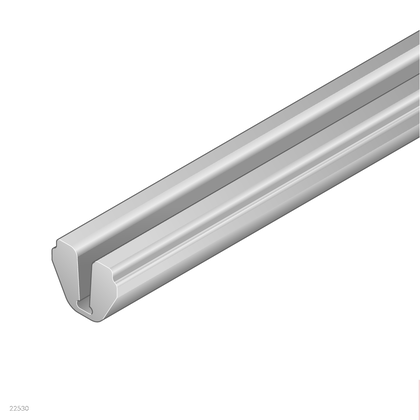

Screw bar profile

Specifications

• Color Light gray (RAL 7035), Signal gray (RAL 7004)
• Condition on delivery Single rod in standard length
• Height 8 mm, 10 mm, 11.7 mm
• Length 2000 mm

Downloads

• Data Sheet

Products

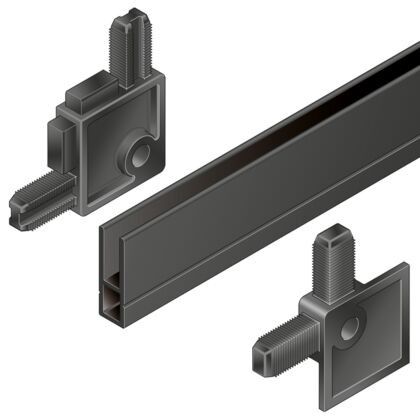

Protective grille profile

Specifications

• Color Black
• Height 9.7 mm, 3000 mm
• Length 30 mm, 52 mm
• Material Aluminum, anodized, PA

Downloads

• Data Sheet

Products

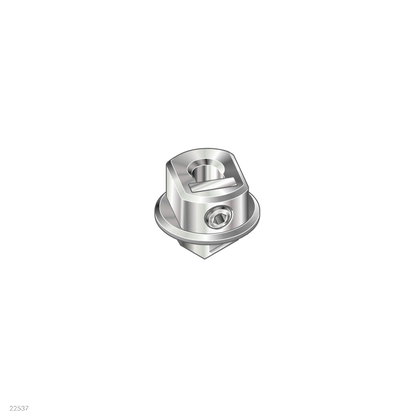

Clamp bushing

Specifications

• Fastening material 1 x headless setscrew ISO4027 M6x10,1x square nut DIN562-M6-04
• Height 20 mm
• Length 20 mm
• Material Diecast zinc

Downloads

• Data Sheet

Products

Plate holder for panel elements

Specifications

• Color Signal gray (RAL 7004)
• Dimension [s max] 6 mm
• Dimension [s min] 2 mm
• Height 22 mm

Downloads

• Data Sheet

Products
